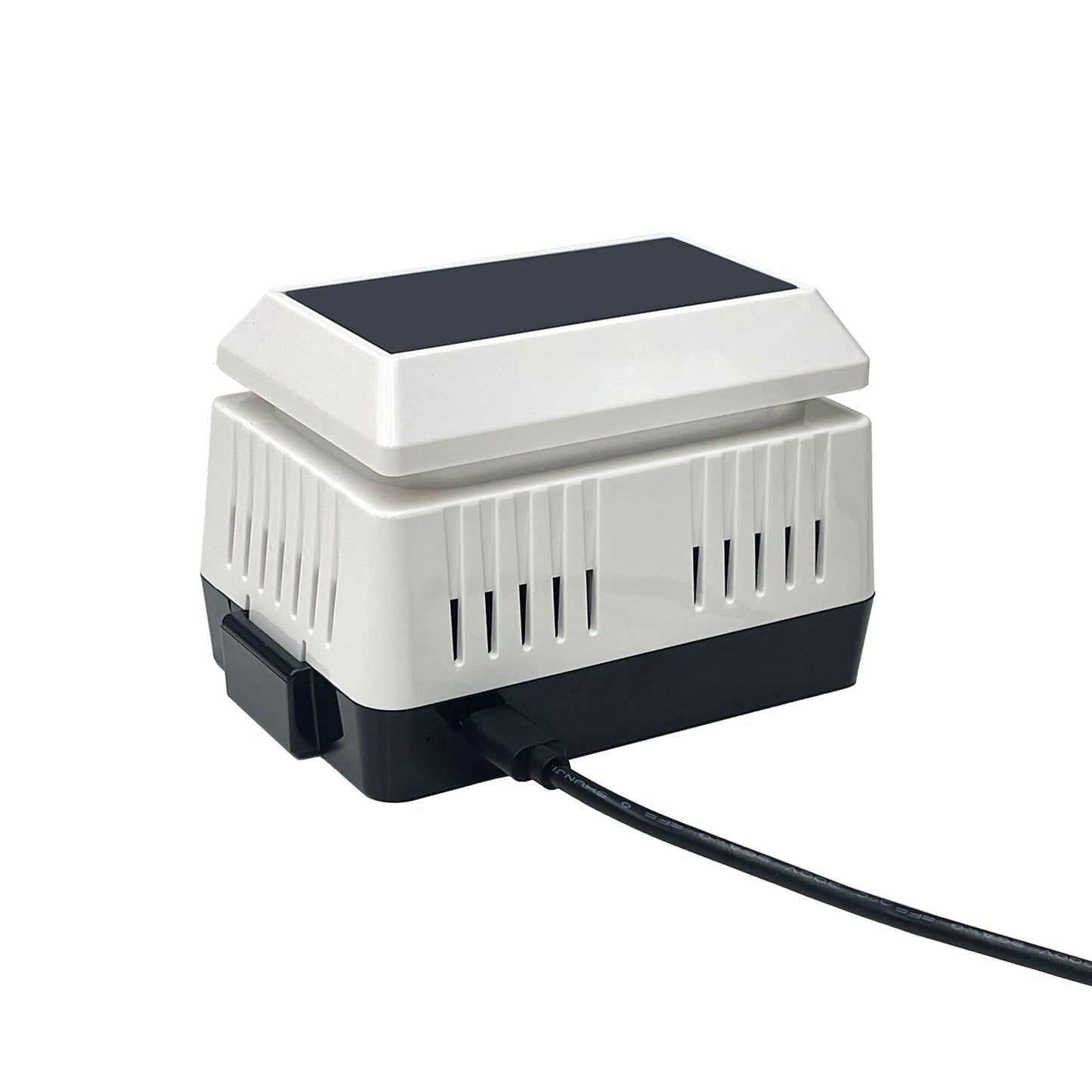

WH45 5-in-1 PM2.5/PM10/CO₂/Temperature/Humidity Air Quality Sensor

WH45 5-in-1 PM2.5/PM10/CO₂/Temperature/Humidity Air Quality Sensor

8 total reviews

Regular price $123.99
Regular price Sale price $123.99
Sale Sold out
Tax calculated at checkout. Shipping calculated at checkout.
  • This Particle Detection Sensor detects indoor PM2.5 / PM10 / CO2 / Temperature / Humidity. Requires to work with GW1000 wifi gateway or HP2551/HP2553/HP3500/HP3501 weather station console.
  • Live Data on APP: requires a GW1000/GW1004 WIFI gateway(sold separately) to connect to WiFi, after the WIFI configuration,the current CO2 concentration and 24H average CO2 concentration & current PM2.5 / PM10 concentration/AQI and 24H AQI and air quality level index can be viewed on the Live Data page of the WS View app
  • Graph & History Records on the Website: supported to upload to our free Ecowitt Weather server(ecowitt.net) to view current sensor data & history records & graph on the website; set and receive email alerts from the server; Remote monitoring with smart phone, laptop, or computer by visiting the website
  • Measures indoor PM2.5, PM10, CO2 concentration, Temperature and Humidity every 60 seconds when powered with USB or detecting every 10 minutes when powered with batteries only; Long wireless range, up to 300 feet (100 meters) in open areas
  • Indoor Air Quality Detector: Suitable to use at home, office, car and other indoor testing; CO2 value calibration function available on the device; PM2.5 value Calibration function available when paired with GW1000/HP2551/HP3500/HP3501


Features

Particle Detection Sensor

· Measures indoor PM2.5, PM10, CO2 concentration, Temperature and Humidity every 60 seconds when powered with USB or detecting every 10 minutes when powered with batteries only.

· USB connection for indoor use only

· CO2 value calibration function available on the device

· PM2.5 value Calibration function available when paired with GW1000/HP2551/HP3500/HP3501

· Long wireless range, up to 300 feet (100 meters) in open areas

When paired with a GW1000 Wi-Fi Gateway:

· Monitor live sensor data on the Live Data page of the WS View app (requires the gateway and your phone using the same Wi-Fi network)

· Displays current PM2.5 / PM10 concentration/AQI and 24H AQI and air quality level index on the Live Data page of the WS View app

· Displays current CO2 concentration and 24H average CO2 concentration on the Live Data page of the WS View app

· Displays temperature and humidity data where the sensor located

· Calibration function available for PM2.5 value

When paired with a Weather Station Console (HP2551/HP3500/HP3501):

· The PM2.5, PM10 and CO2 data automatically scrolls displaying on the screen every 5 seconds

· Calibration function available for PM2.5 value

When uploaded to Ecowitt Weather Server:

· View current sensor data & history records & graph on the website

· Set and receive email alerts from the server

· Remote monitoring with smart phone, laptop, or computer by visiting the website


Specifications

Measurement

Range

Accuracy

Resolution

PM 2.5

0~999ug/m3

>100ug/m3, ±15%

<100ug/m3, ±15ug/m3

1ug/m3

PM 10

0~999ug/m3

>100ug/m3, ±25%

<100ug/m3, ±25ug/m3

1ug/m3

CO2

0- 40000ppm

0-1000ppm ±50ppm

>1000ppm ±5%

1ppm

Temperature

-40°C – 60°C (-40°F - 140°F)

± 1°C, or ± 2°F

0.1°C, or 0.1°F

Humidity

0%~100%

± 5%

1%



Transmission distance in open field: 100m(300 feet)

Frequency: 915/868/433MHz (915MHz for North America, 868MHz for Europe, 433 for other areas)

Sensor reporting interval: 1 minutes (10 minutes when only powered by batteries)

Power consumption



Particle Detection Sensor: AC power (5V 1A) - Not included 2 x AA 1.5V Batteries for back up - Not included


Note:

If you have a WH41 or WH43 PM2.5 sensor, the reading of PM2.5 may be different due to different sensor type used.

This sensor without waterproof, please keep it away rain.

View full details

Customer Reviews

Based on 8 reviews
88%
(7)
13%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Michi Henning
Works well

Getting the sensor to show up on ecowitt.net was simply a matter of plugging it in. No further fiddling necessary. The humidity registers about 2% lower than with a calibrated humidity meter right beside the WH45. No big deal, the difference does not really matter. (Note that it is not possible to calibrate the humidity sensor, either on the device or with the WSView app.) Temperature appears to be accurate to about 0.7 ºC. (Again, the temperature sensor cannot be calibrated.)

I don’t know how accurate CO₂, PM 2.5, and PM 10 measurements are. But they line up with what is reported by public and very accurate measuring stations in my area, so if there is any calibration error, it likely is minimal.

Overall, the unit works well, and I’m happy with the purchase. It would be a nice touch to permit calibration of humidity and temperature, which surely could be done in software.

J
Josef Šustek
Not tested yet

After Christmas I Will be know

T
Thierry VELNA
Ecowitt wh45

Très bien et précis

H
Horst Neumann
Top Qualität, schnelle Lieferung

Misst exakte Daten

B
Benedikt Hübel
WH45

Works as intended. I can recommend!
