Ecowitt WH40H Wireless Self-Emptying Rain Gauge with 3.5cm Enhanced Rain Funnel Design
15% OFF Code: MD2025 (April 28 ~ May 15 PST)
Couldn't load pickup availability
Features
1) Measures rainfall amount every 49 seconds.
2) Long wireless range, up to 328 feet (100 meters) in open areas.
3) 3.5cm extension height rain bucket funnel

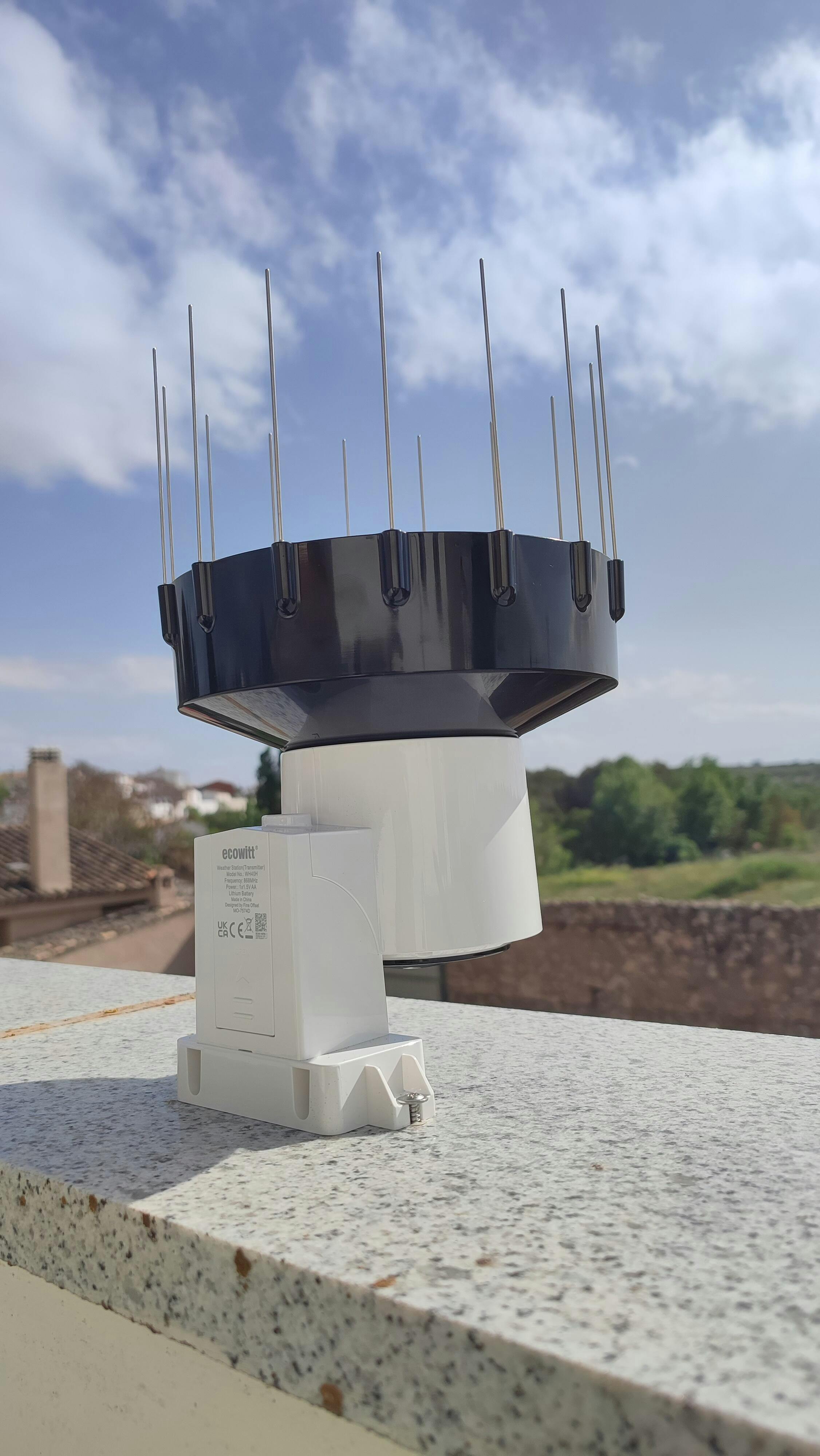

4) Coming with 15 bird spikes prevents birds from nesting in the rain collector.
Specification
| Model | WH40H |
| Name | Wireless Self-emptying Rain Gauge Sensor |
| Dimensions | 189*189*194mm |
| Weight | 583.3g |
| Material of Plastic Casing | ASA+PC |
| Rainfall Metering Range | 0mm to 9999mm |
| Rainfall Metering Accuracy | ± 5% |
| Rainfall Metering Resolution | 0.1 mm |
| Data reporting Interval | About 49 seconds |
| RF Connection Frequency | 920/915/868/433MHz (depending on local regulations) |
| RF Wireless Range (in open areas) | Over 100 meters (330 ft.) |
| Operating Temperature Range | -40°C to 60°C(-40℉ to 140℉) |
| Protection Rating | IPX4 |
| Power Supply | 1*AA 1.5V Alkaline batteries(not included) |
| Battery Life | 1 year |
Package List
1 x WH40H Rain Gauge Sensor
2 x U-Bolts Set for Mounting on a Pole (for Mounting on the Pole)
4 x Threaded Nuts for U-Bolts Set (M5 size)
1 x Metal Mounting Plate Set to Be Used with U-Bolt
1 x Stainless Steel Filter (for Rain Collector)
2 x Stainless Steel Round Head Cross Screw(for Mounting on the Surface)
2 x Tube Sleeve of Screws for Round Head Cross Screw
15 x Stainless Steel Bird Spike
Compatibility Instructions
for all ecowitt network consoles
Please follow the table to make sure you choose the right sensors and concoles before check out.
Note: The "1/4/8/16" means 1 console supports 1/4/8/16 sensors
( excluding accessories )
Customer Reviews
Recibido en España en 9 días. Sorprende el tamaño en comparación con el que incluye la estación (mas grande). Solamente necesita una pila tipo AA para funcionar. Vinculada a una estación Froggit HP1000SE PRO, funcionando sin problemas. Ahora a esperar que llueva :-)
The WH90 unit rain gauge is proving hopeless compared to the WH40. The WH90 can be out by an order of magnitude some days. Its still hopeless even after trying to calibrate it against the WH40. Forget the haptic units and only use the traditional bucket system
Very happy. Thanks
Quite the improvement over the rain gauge that came with the ecowitt weather station, since it is bigger, easier to disassemble and clean out spiders, and worked immediately - It connected fast! I didn't even have to do anything. Put the batteries in and it connected to the Hub, and replaced the old rain gauge readings. And I love that it can on top of a post, rather than all that messing about with a pole.
El WH40H llegó sin problemas, una vez abierto y revisado se observa que está realizado con buenos materiales y el aumento del embudo, creo que es un gran acierto para Ecowitt. Ahora toca la prueba de campo y ver como se porta pasado los días. Sólo espero que también lo hayan mejorado con lo que respecta al sensor y la conexión con la consola, pues el anterior duró 14 meses. Sería bueno que Ecowitt ampliase a 24 meses la garantía internacional, por lo menos.
Luis Fernández
Hi dear,
After upgrading the GW1200 gateway to version V1.3.3, it can connect up to 16 WH51/WH51L sensors. Please check if your version is updated. If you have any issues, feel free to contact me anytime. Thank you.
Best regards,
Ecowitt Support Team
