Ecowitt WN1700 Regenmesser Mini, Kompaktes hochpräzises drahtloses IoT-Niederschlagsüberwachungsset mit Echtzeit- und historischer Niederschlagsanzeige

Introduction

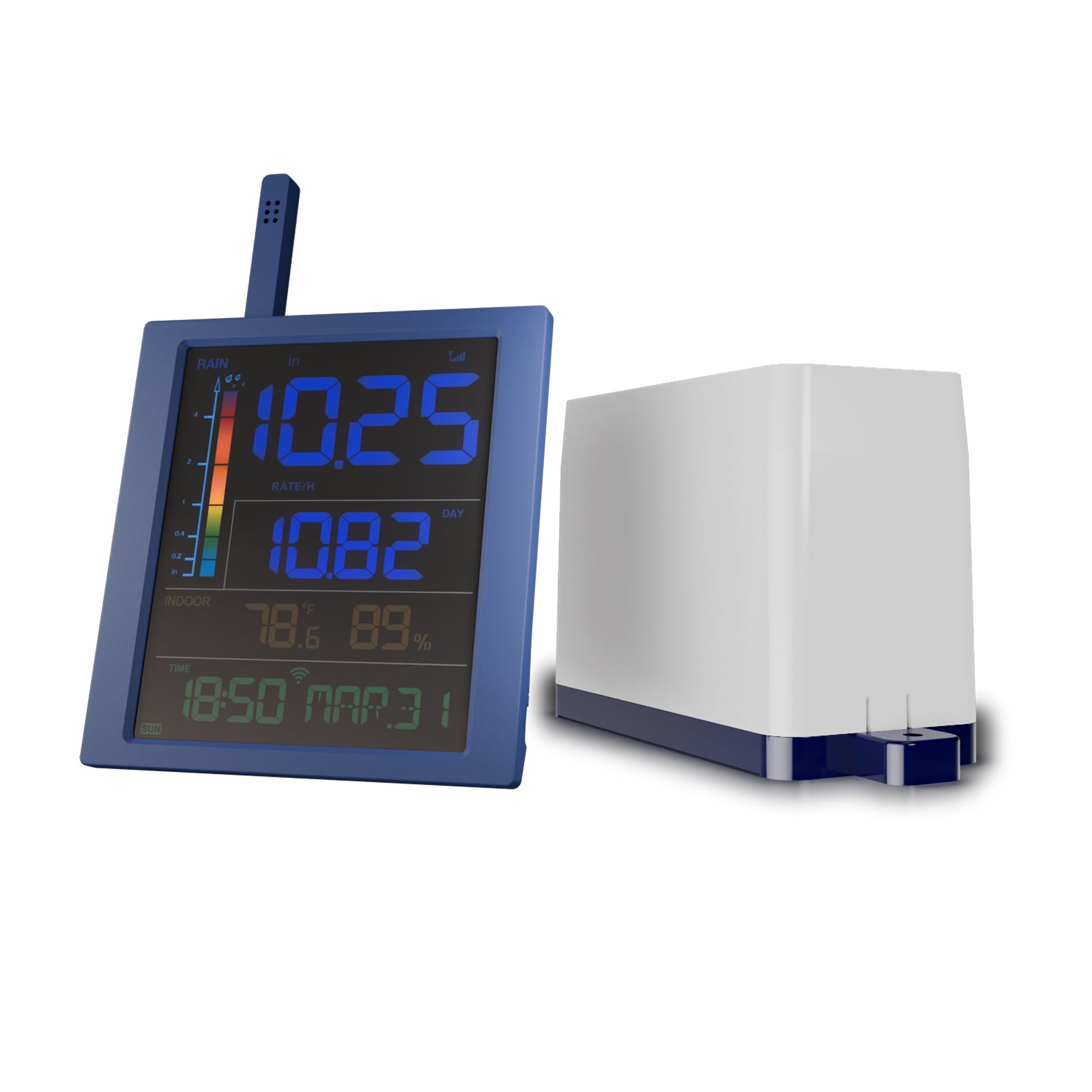

The all-new WN1700 Rain Gauge Mini Kit is designed specifically for rainfall monitoring. The WN1700_C console works with the WN20 rain gauge and is compatible with all Ecowitt rain gauges.
It also functions as a full Wi-Fi gateway, capable of connecting to all Ecowitt sensors and IoT devices.
Over half of the display is dedicated to rainfall information, including real-time rain rate, rain events, and selectable historical data (day, week, month, year, total).
In addition, it displays indoor/outdoor temperature and humidity, as well as data from multi-channel temperature & humidity sensors.

Features

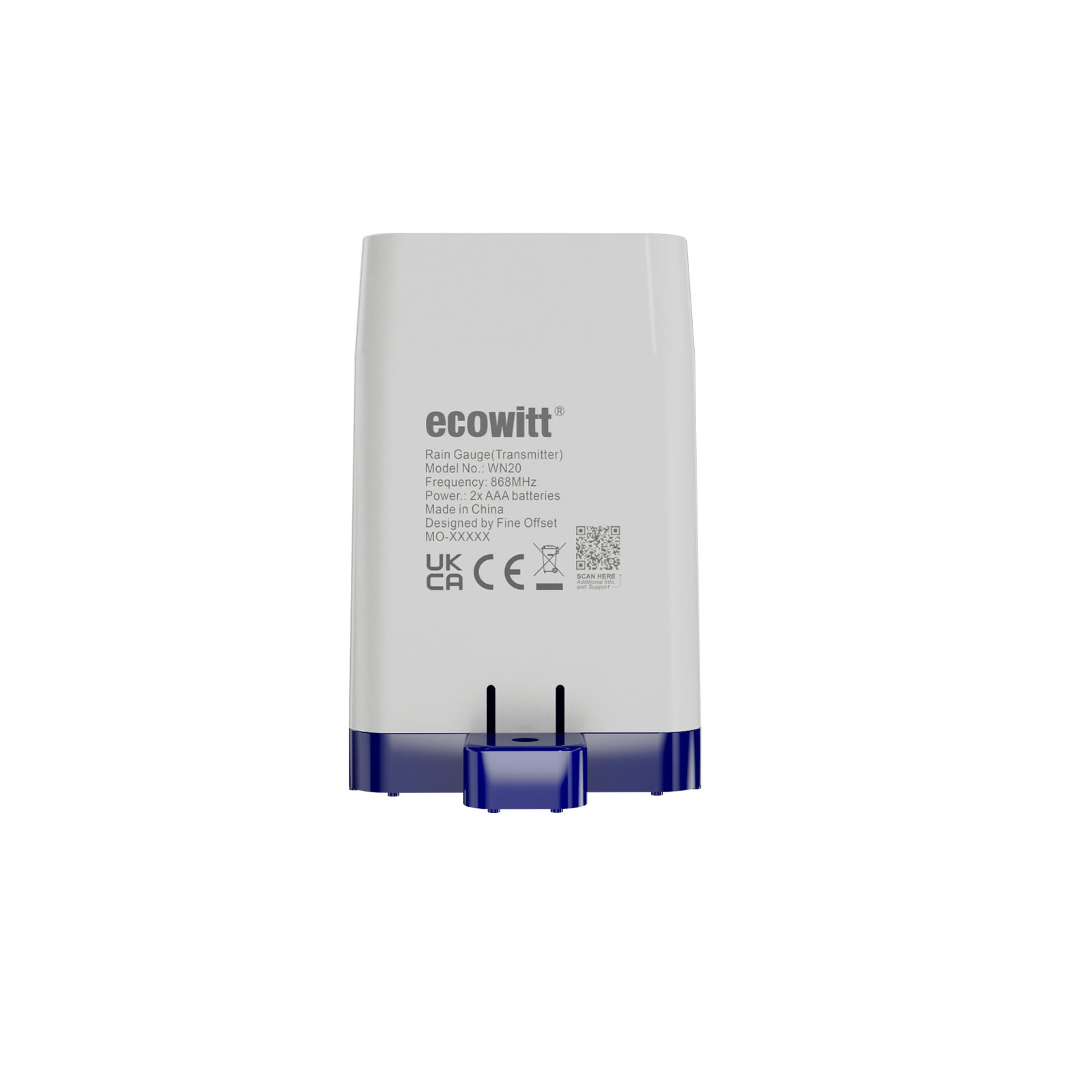

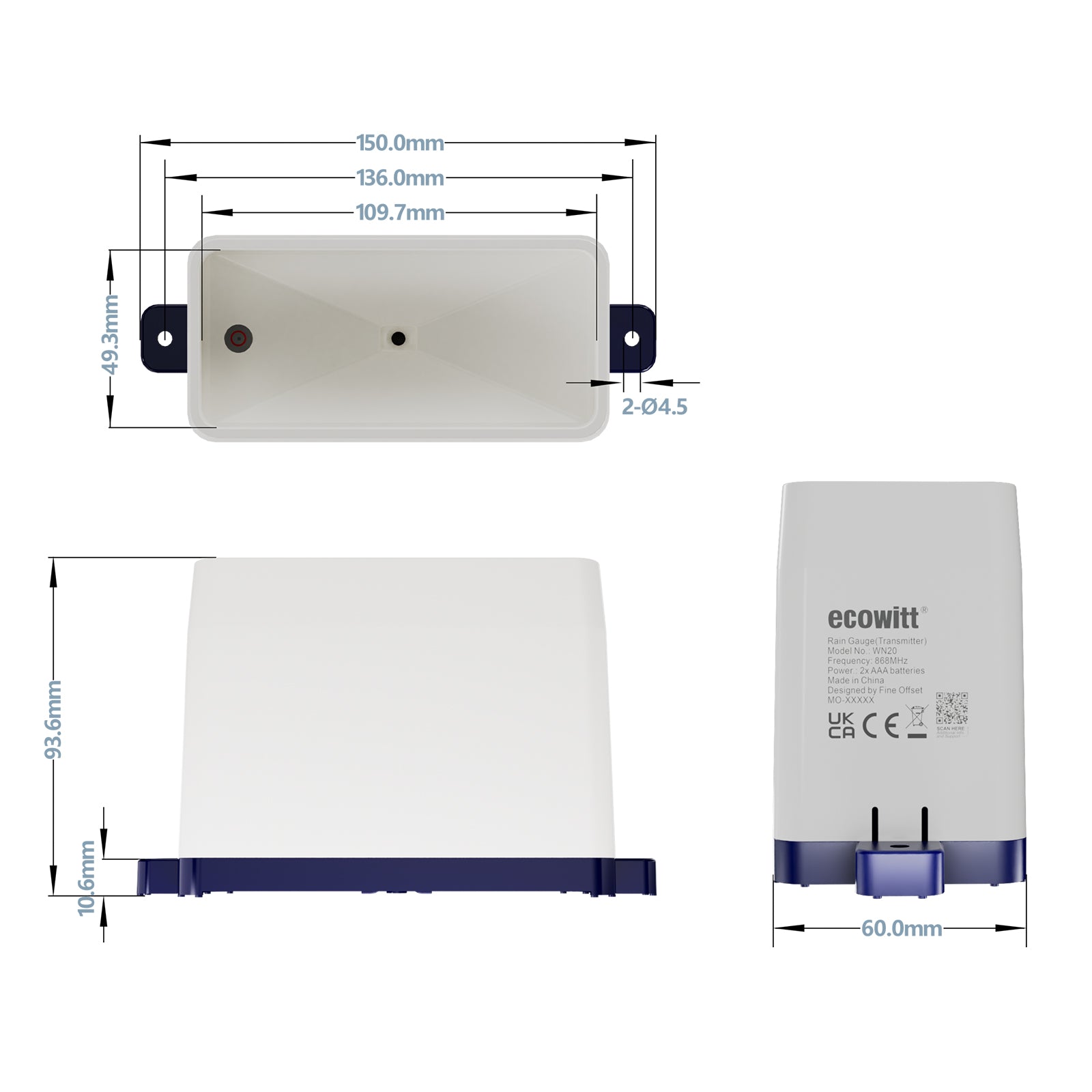

WN20 Rain Gauge Sensor

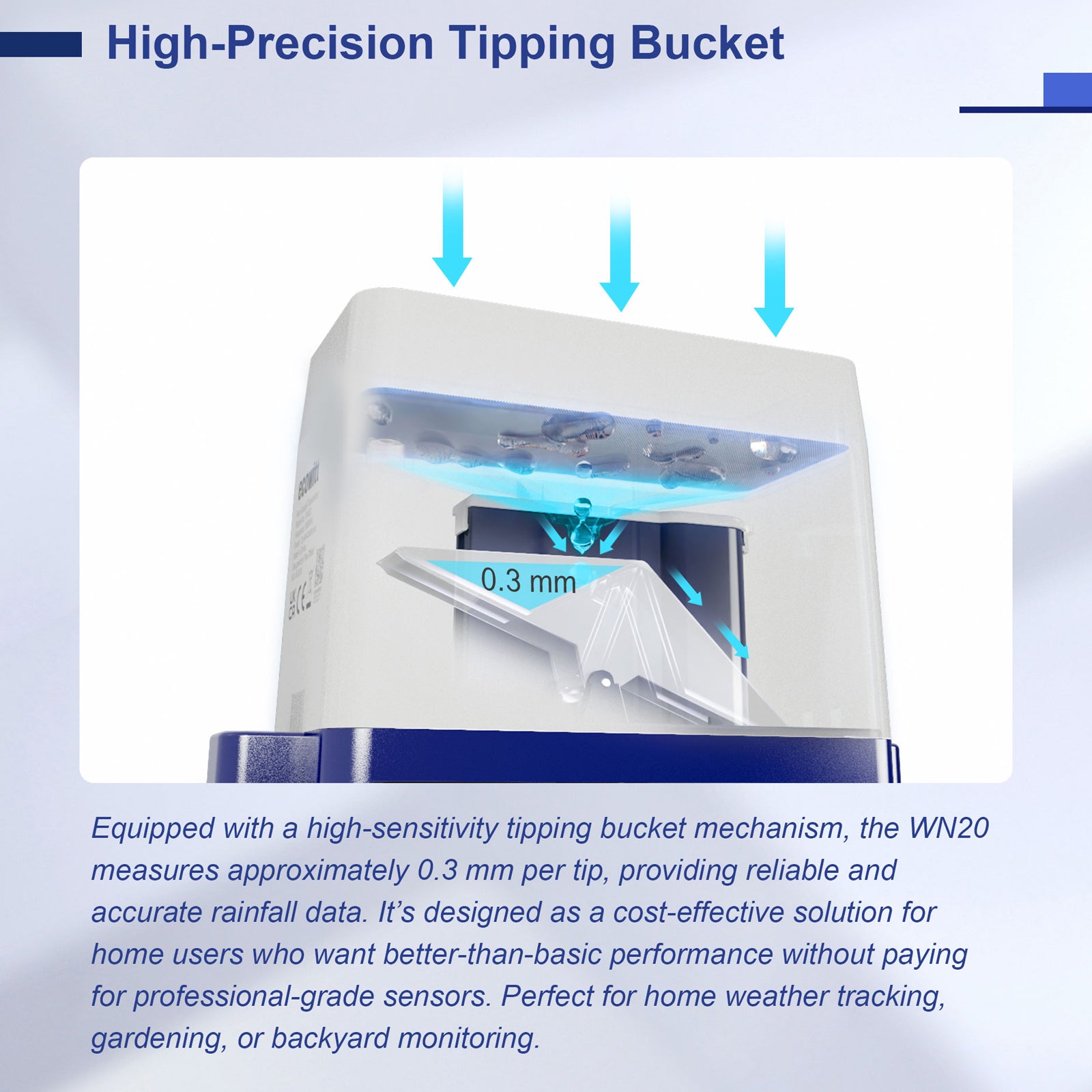

• High-sensitivity tipping bucket design, measuring 0.3 mm per tip. Automatically transmits rainfall data every 48 seconds.

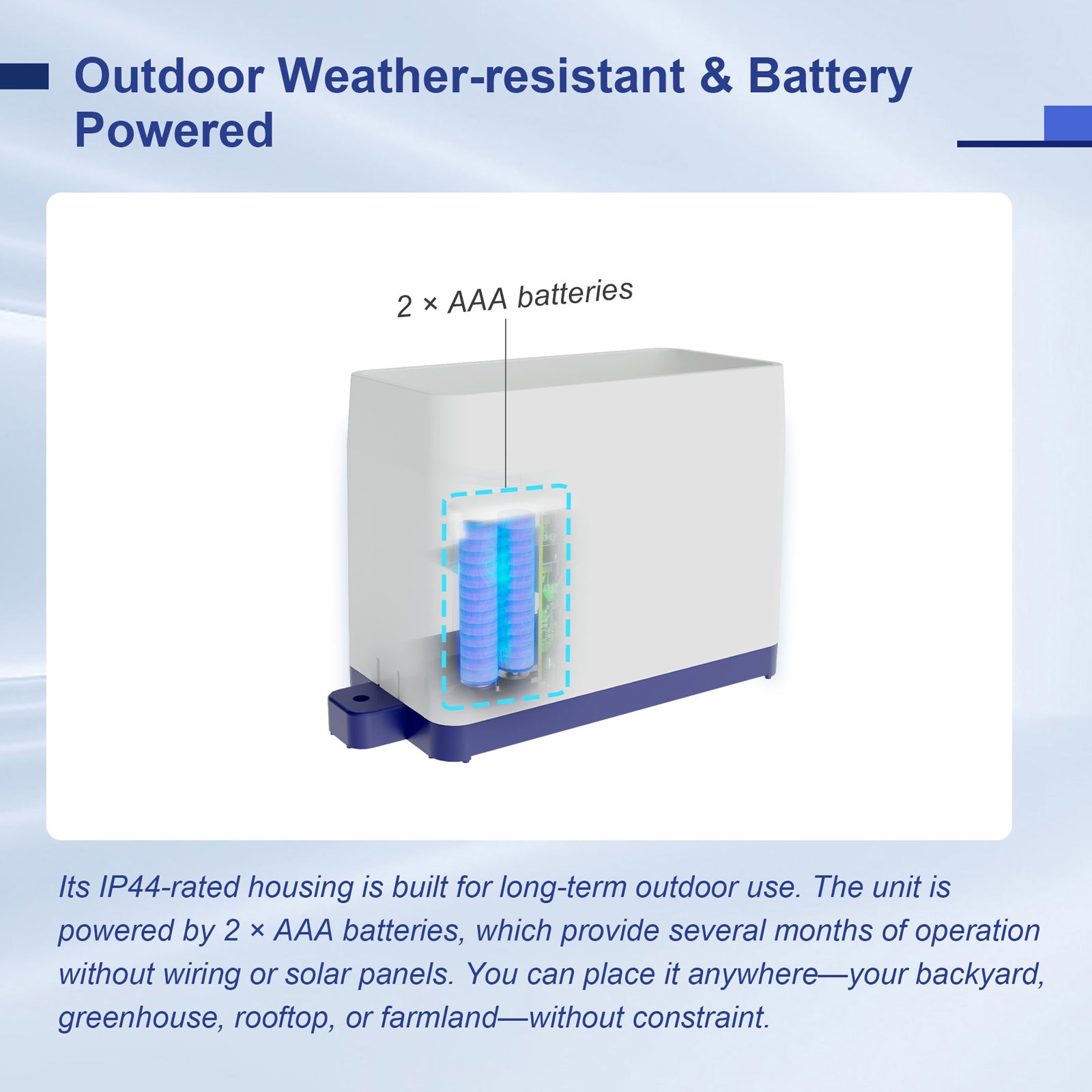

• Wireless, battery-powered (2×AAA) with IP44 weatherproof protection for reliable outdoor use.

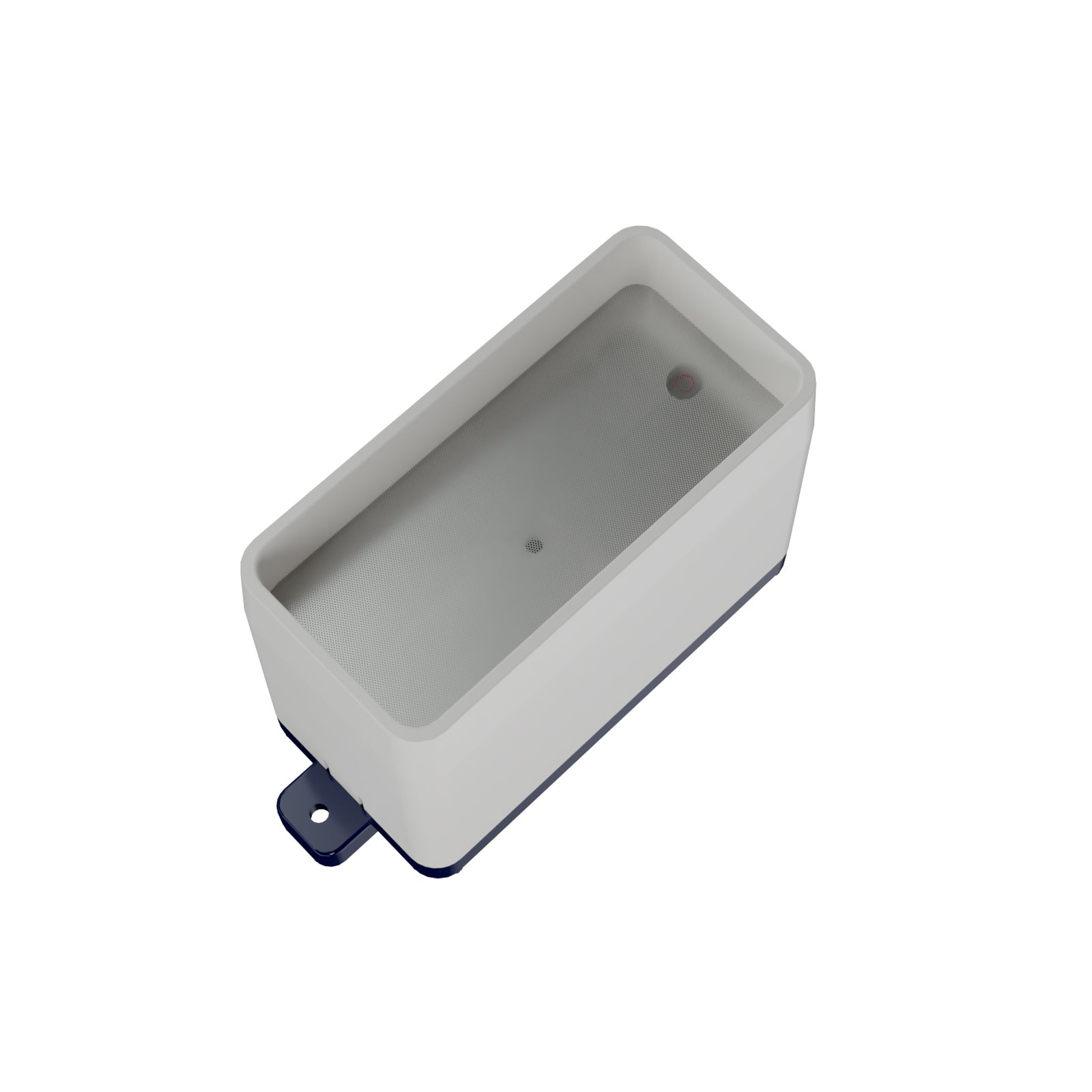

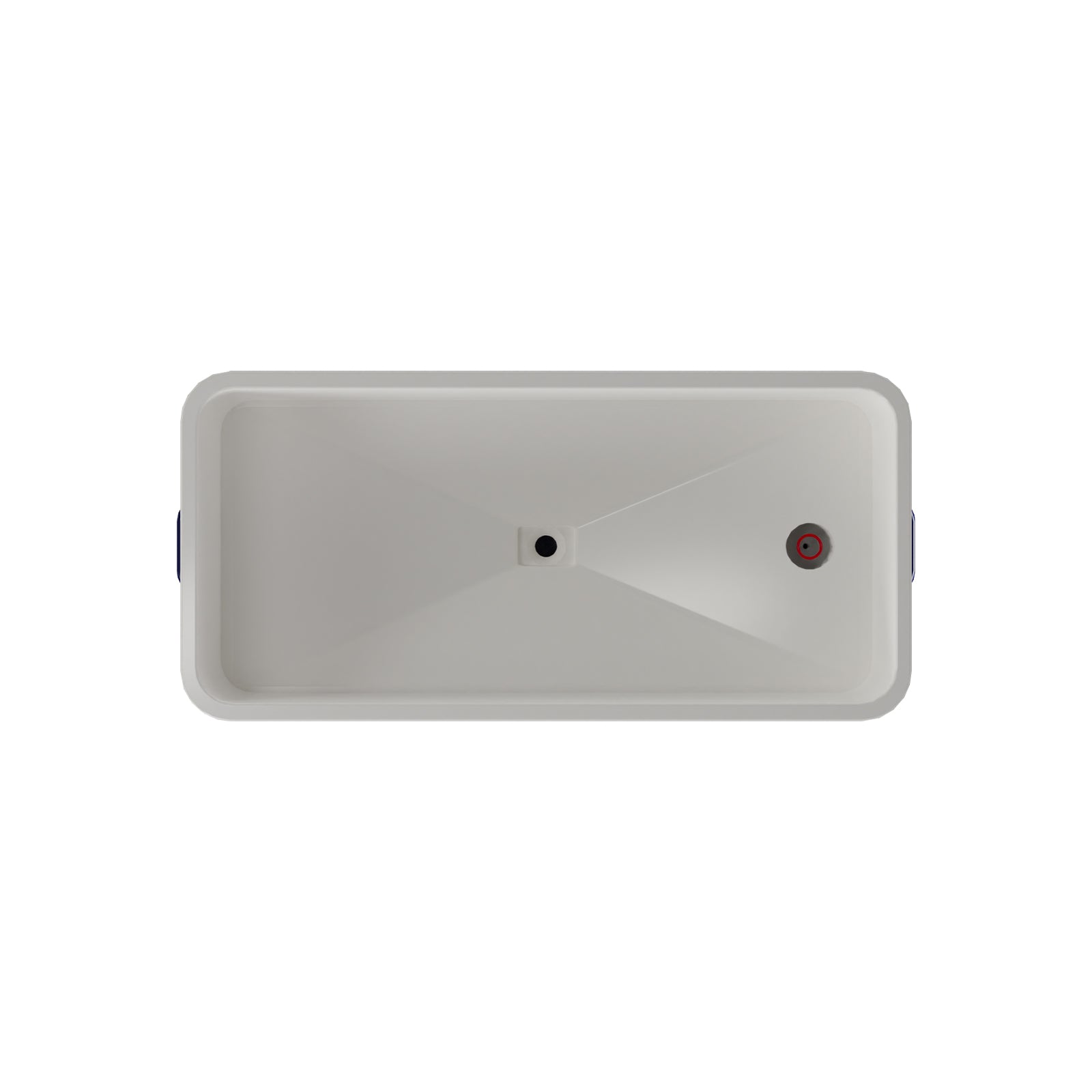

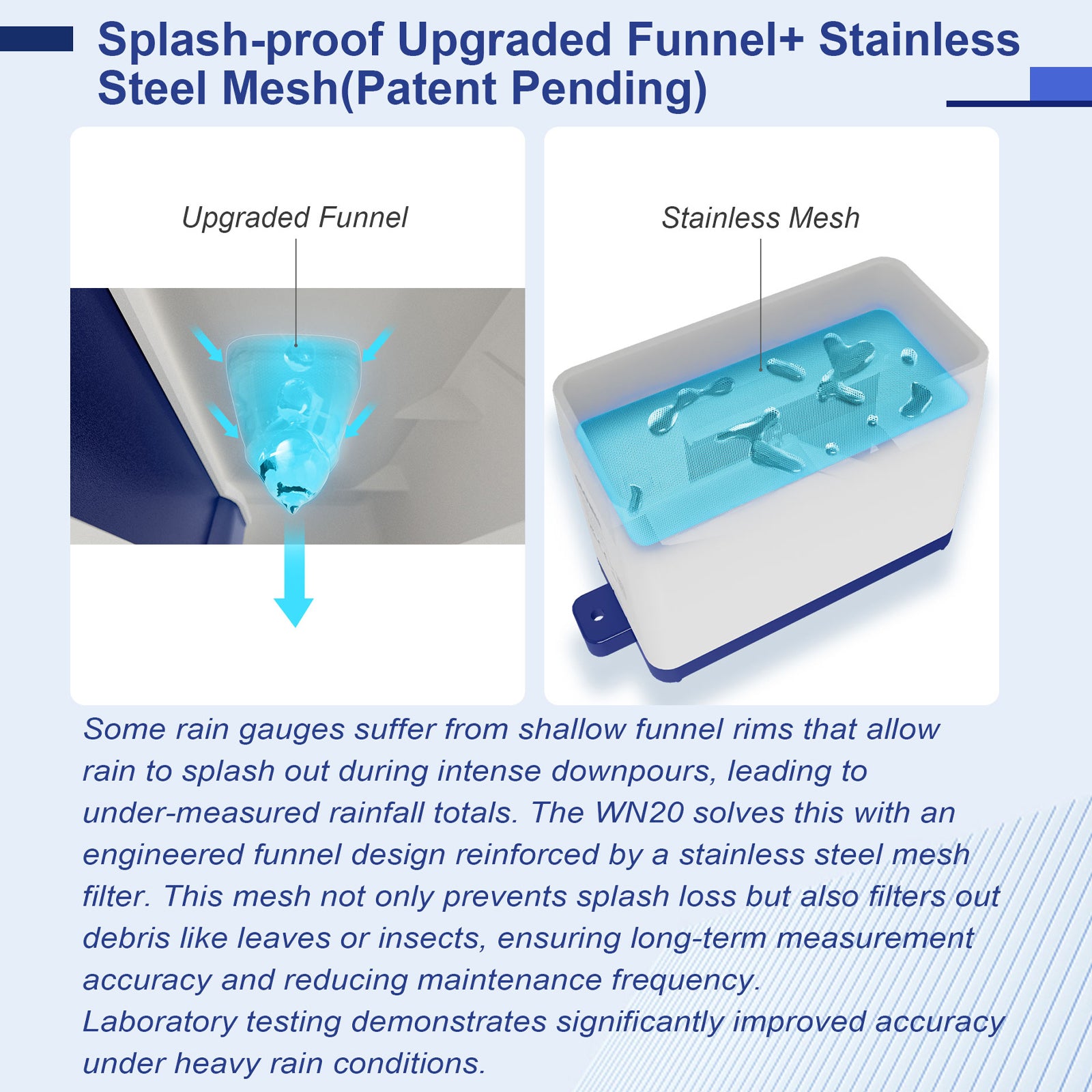

• An anti-splash stainless steel mesh is installed over the funnel to prevent splash loss and protect against debris.

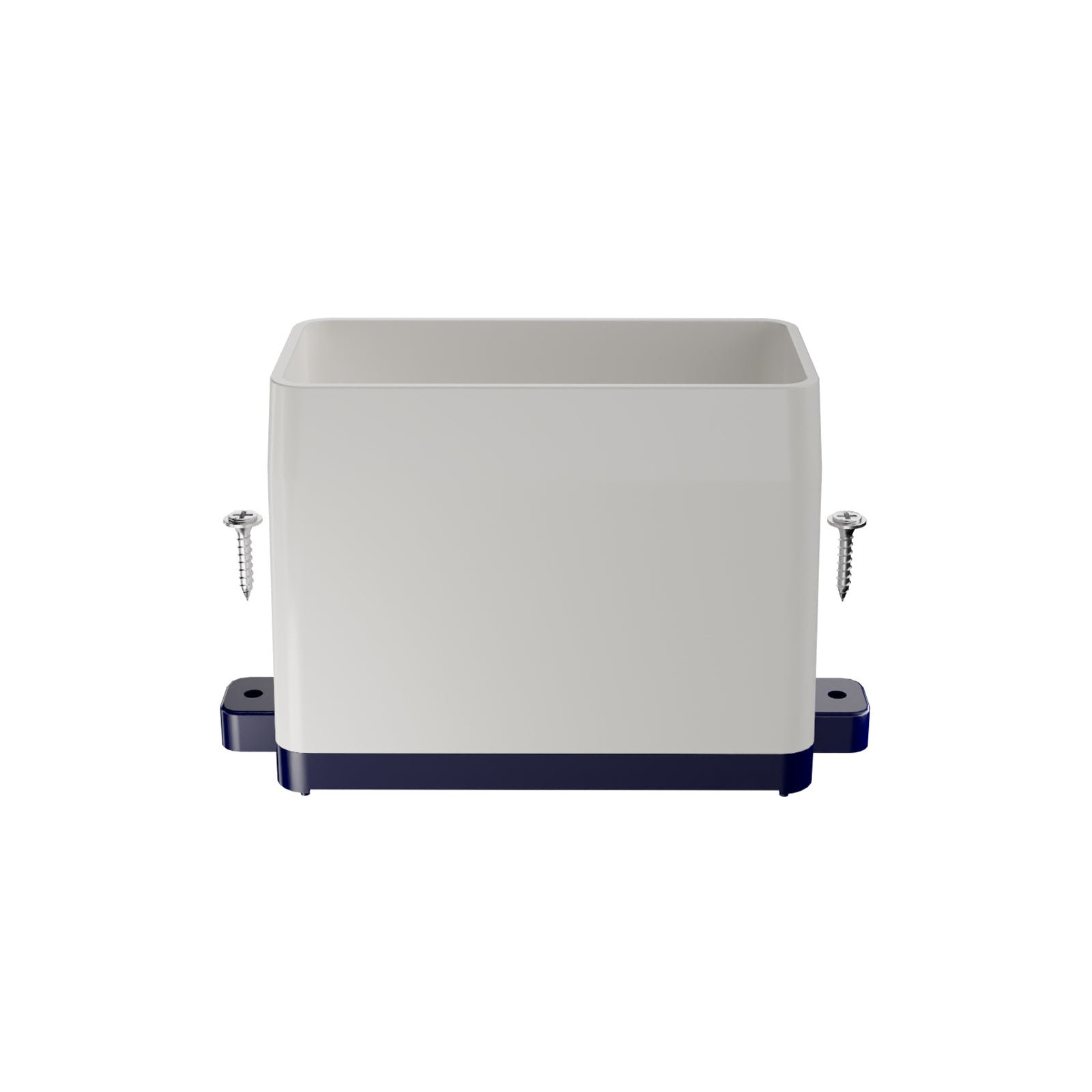

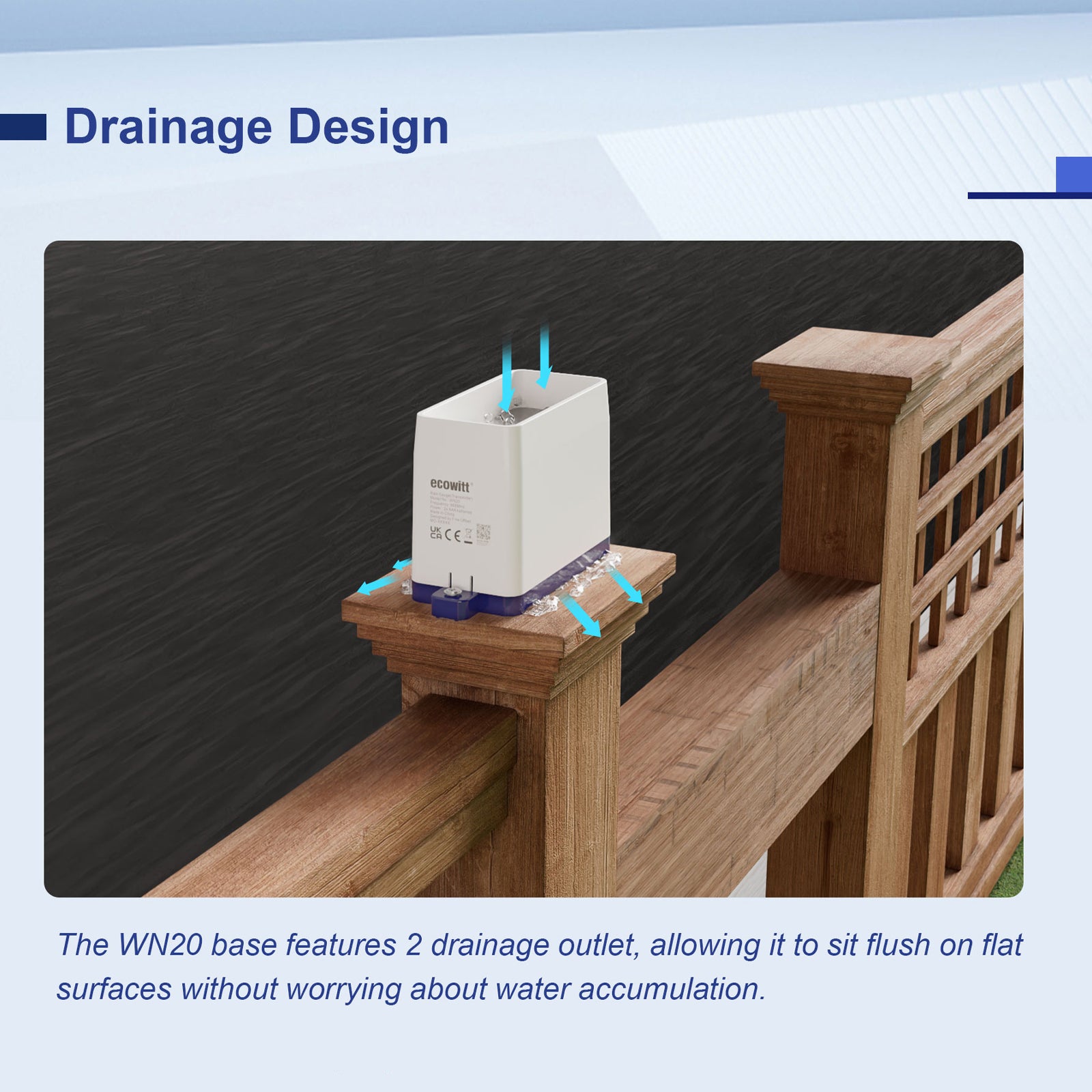

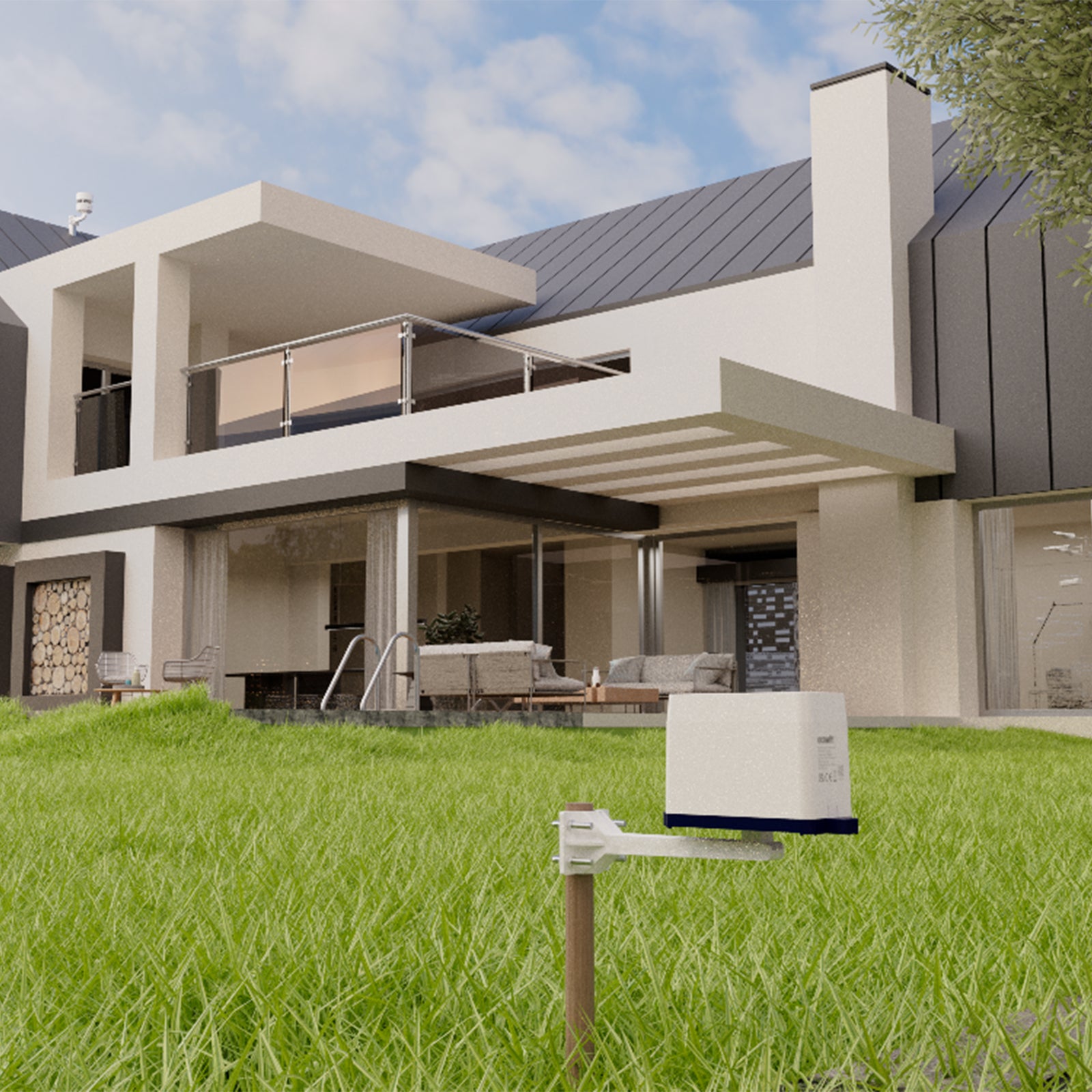

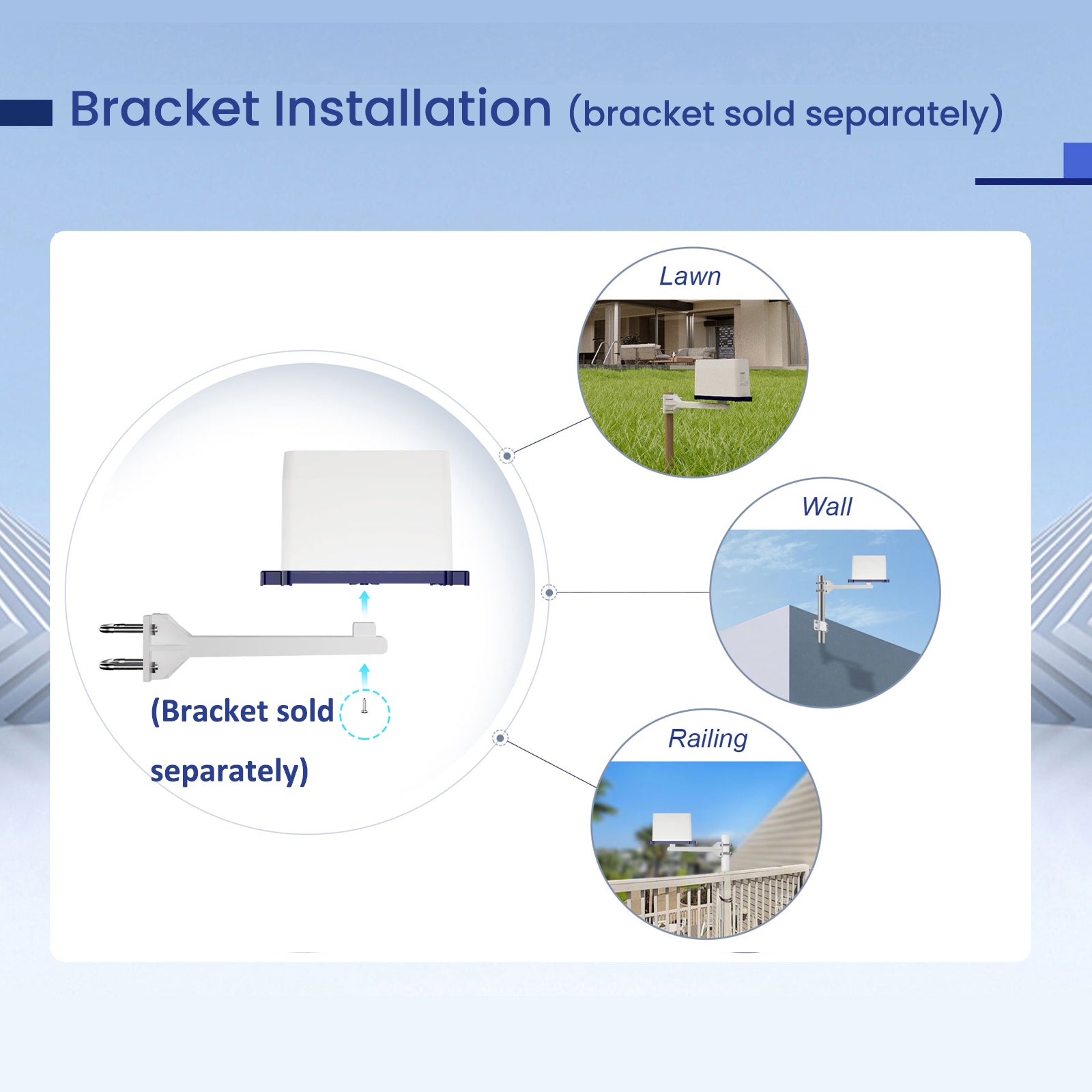

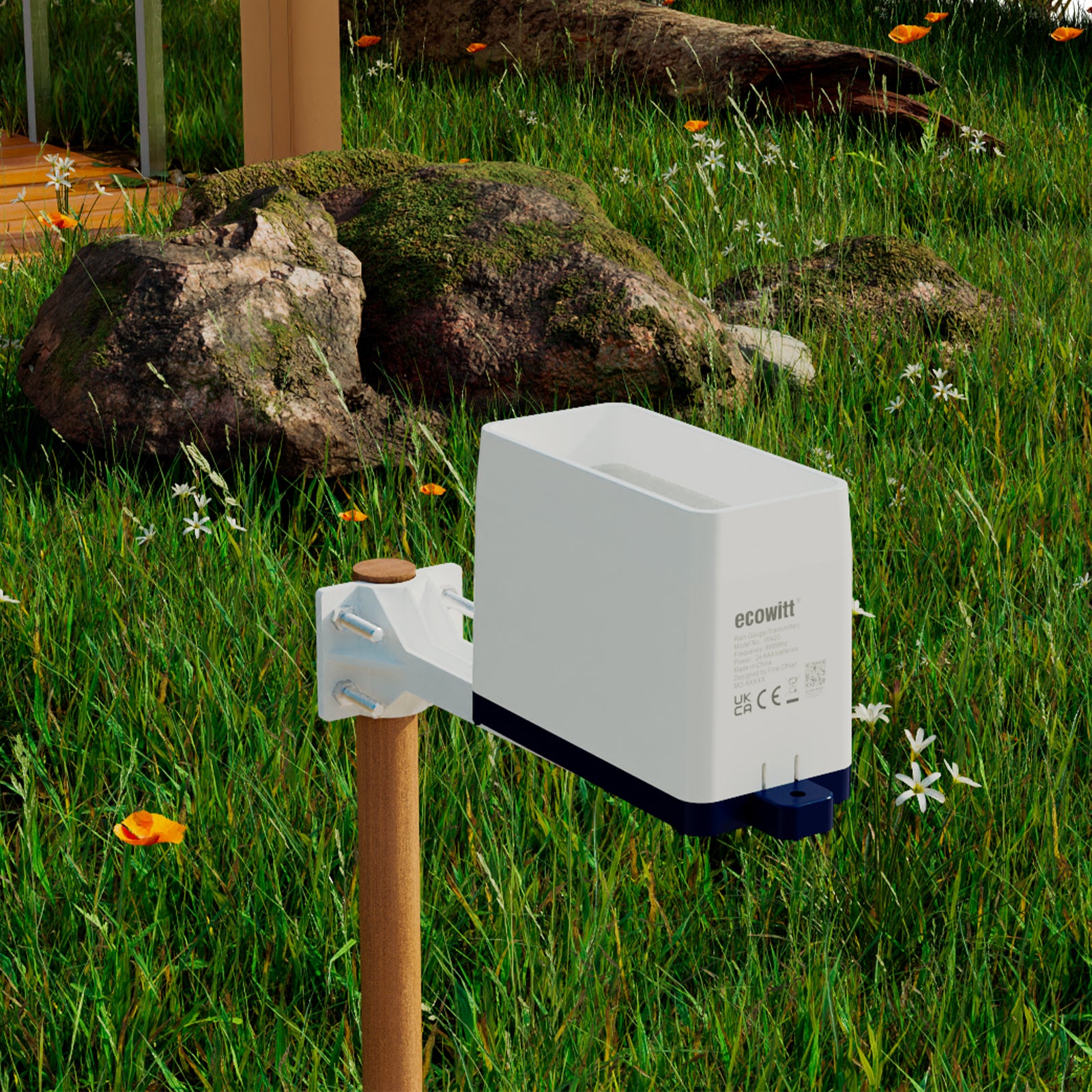

• Flat-bottom for stable placement, with optional screw or bracket mounting(bracket sold separately).

• Seamlessly pairs with Ecowitt consoles and gateways for complete home or agricultural weather monitoring.

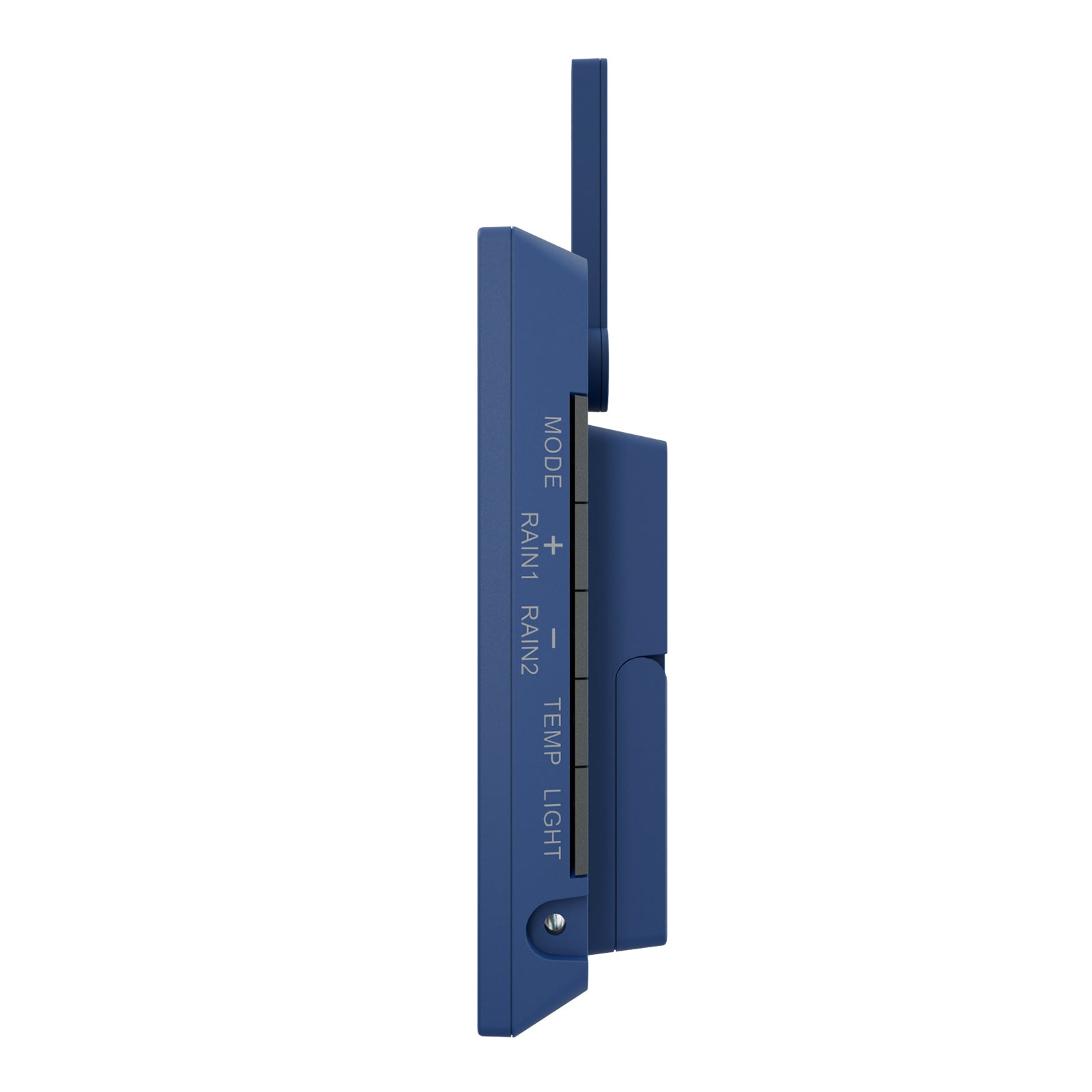

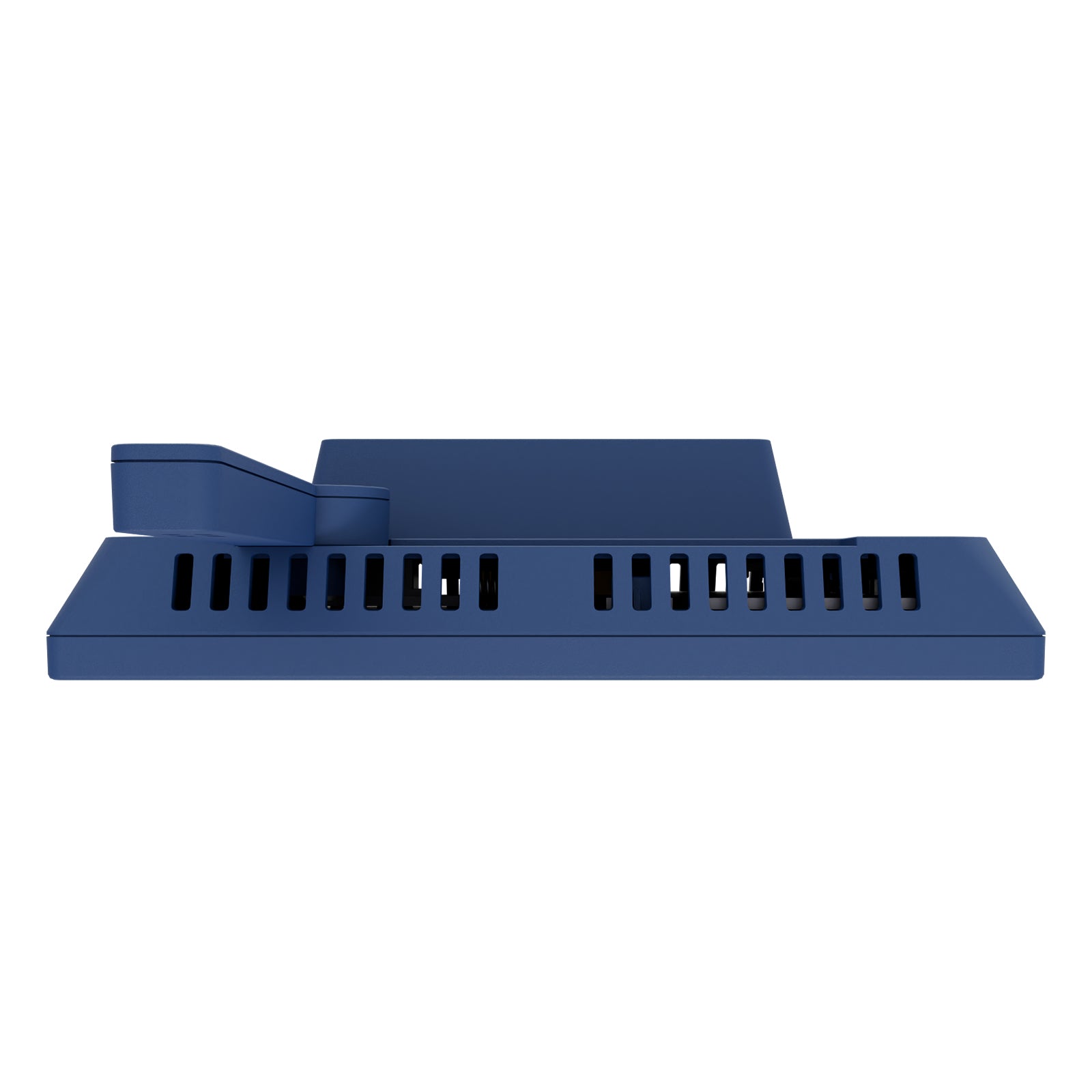

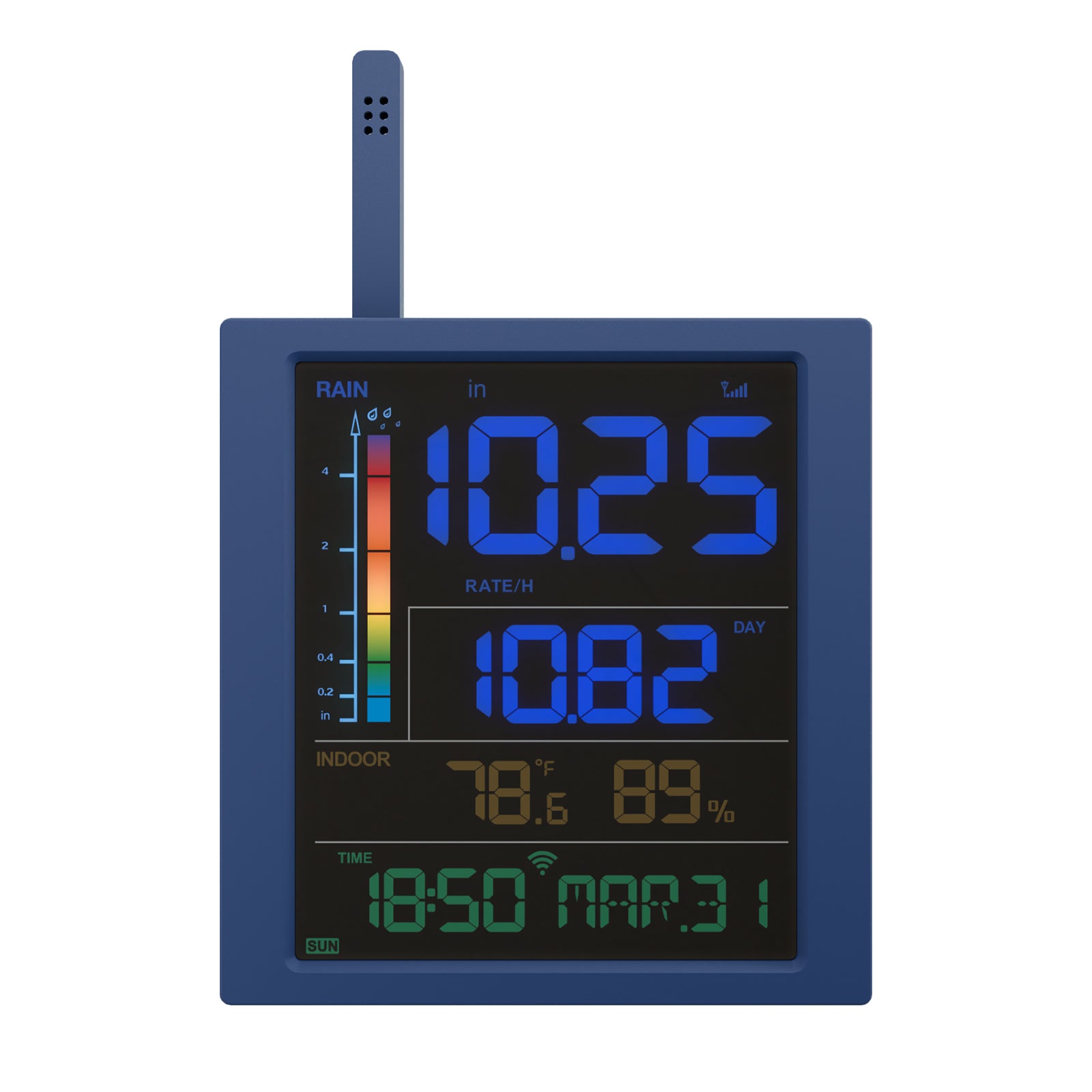

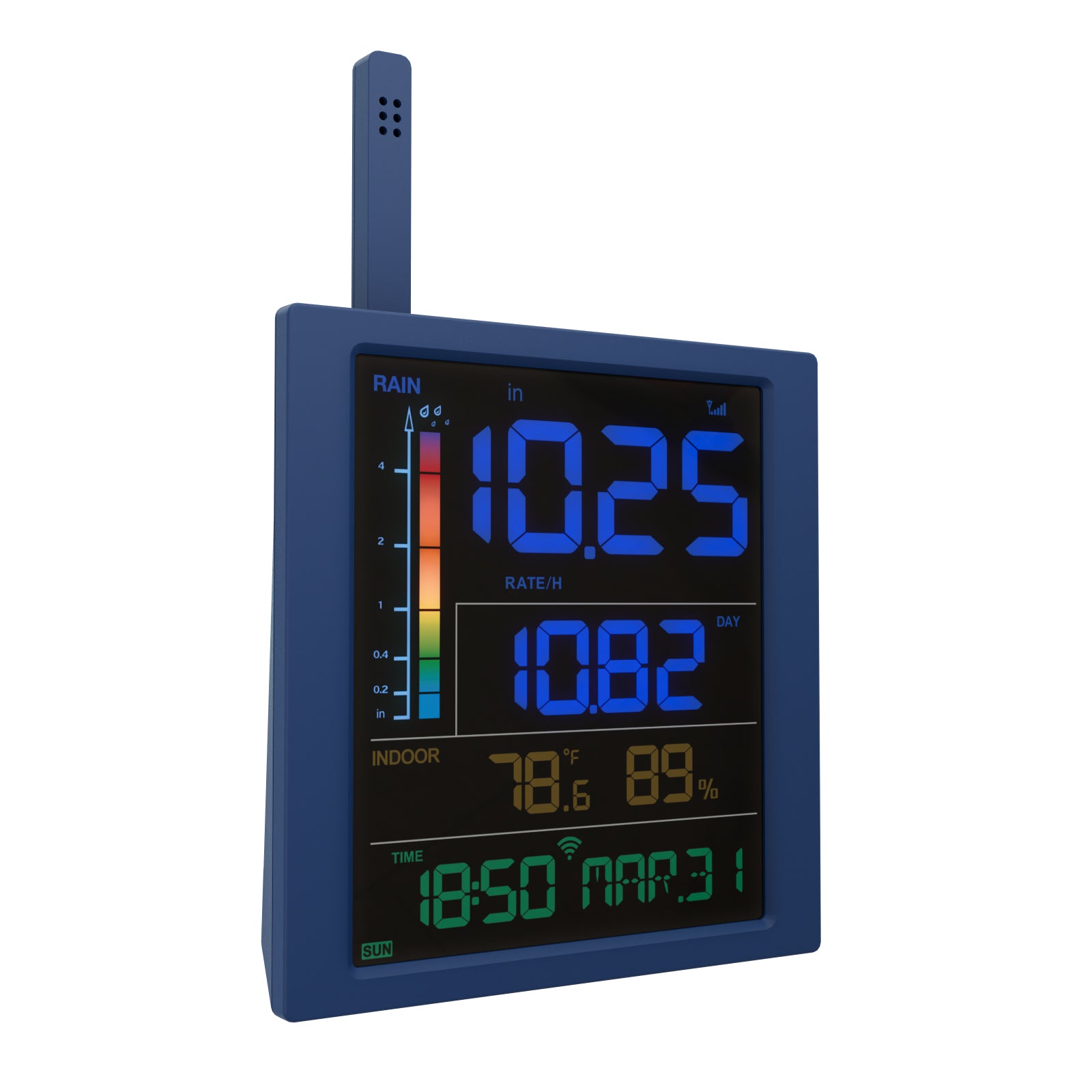

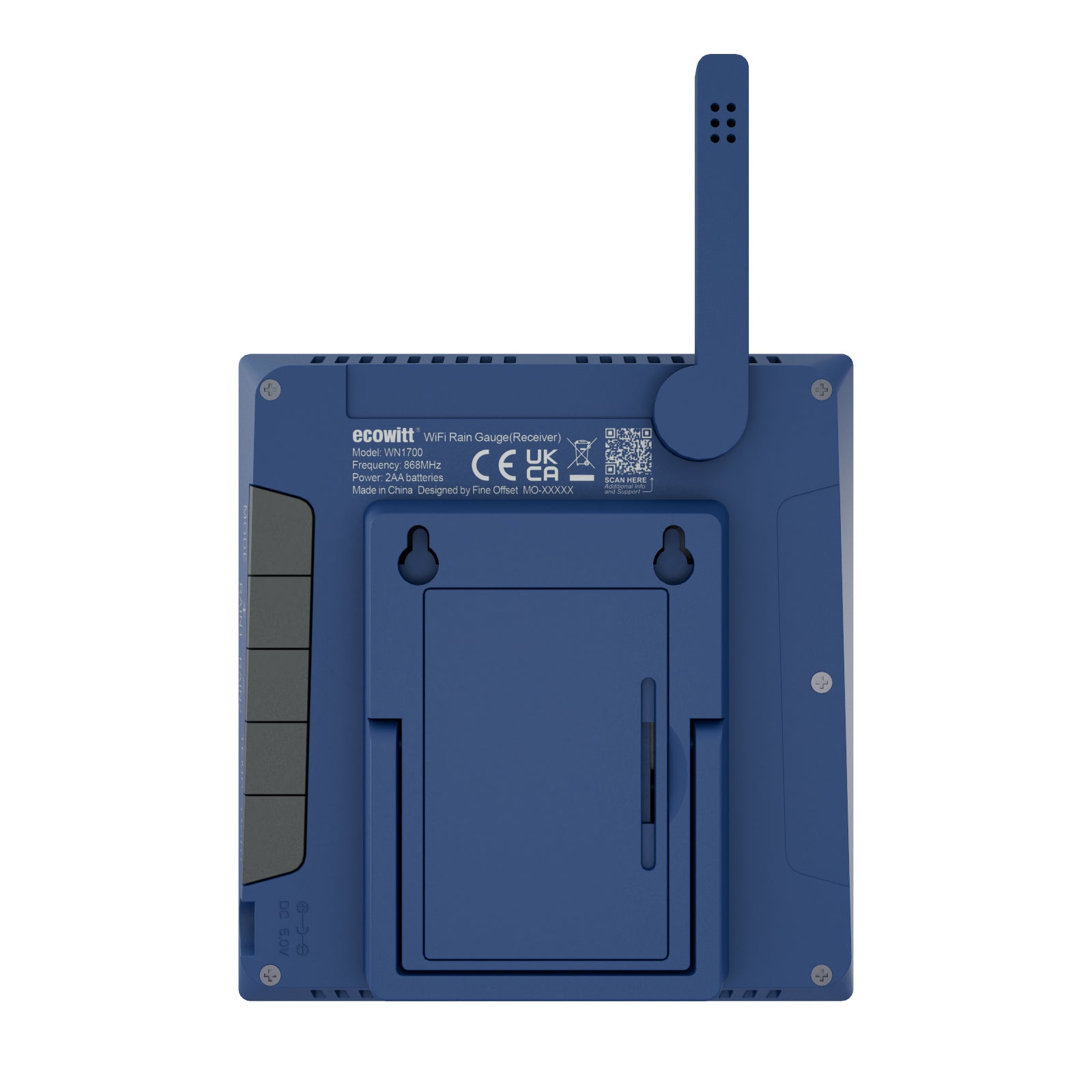

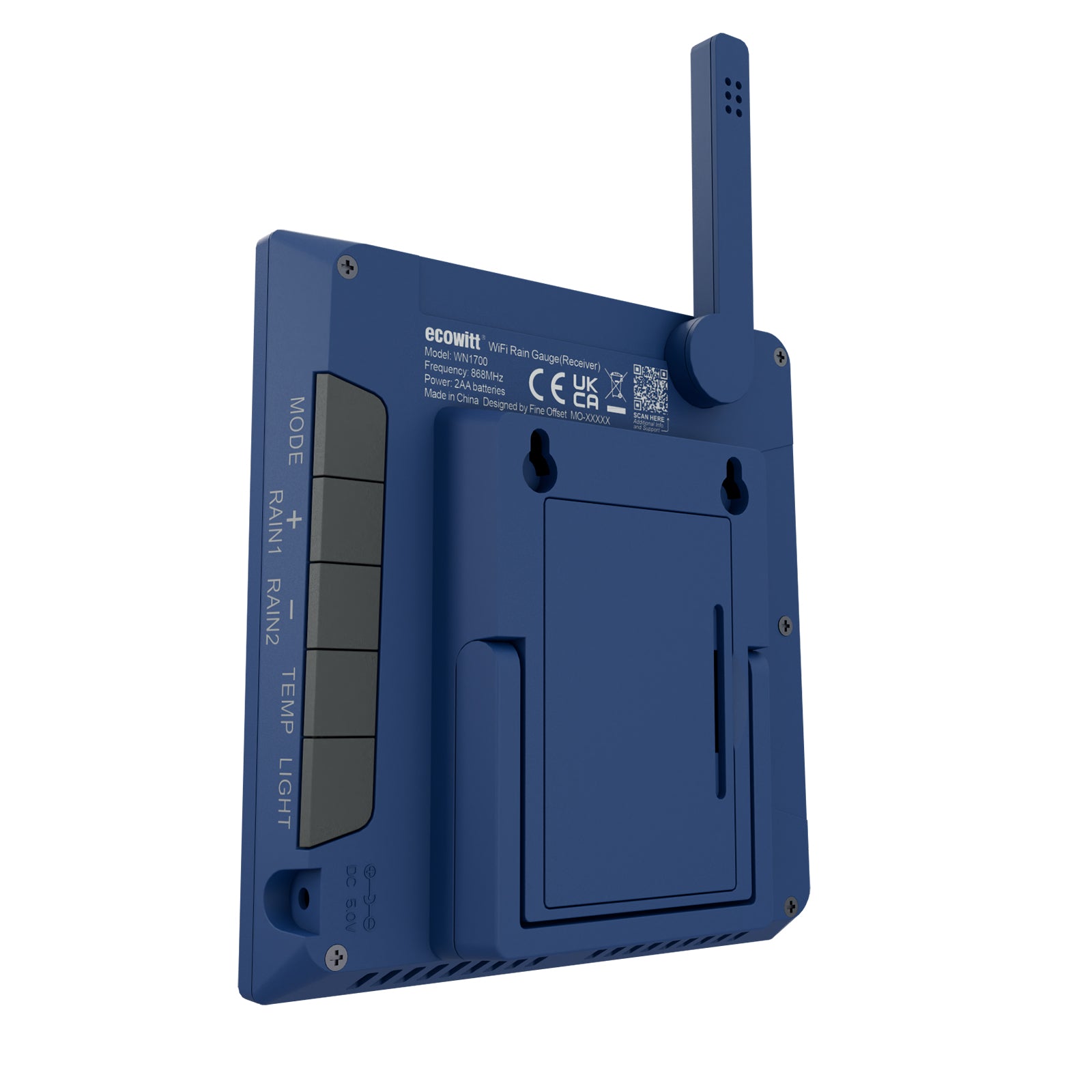

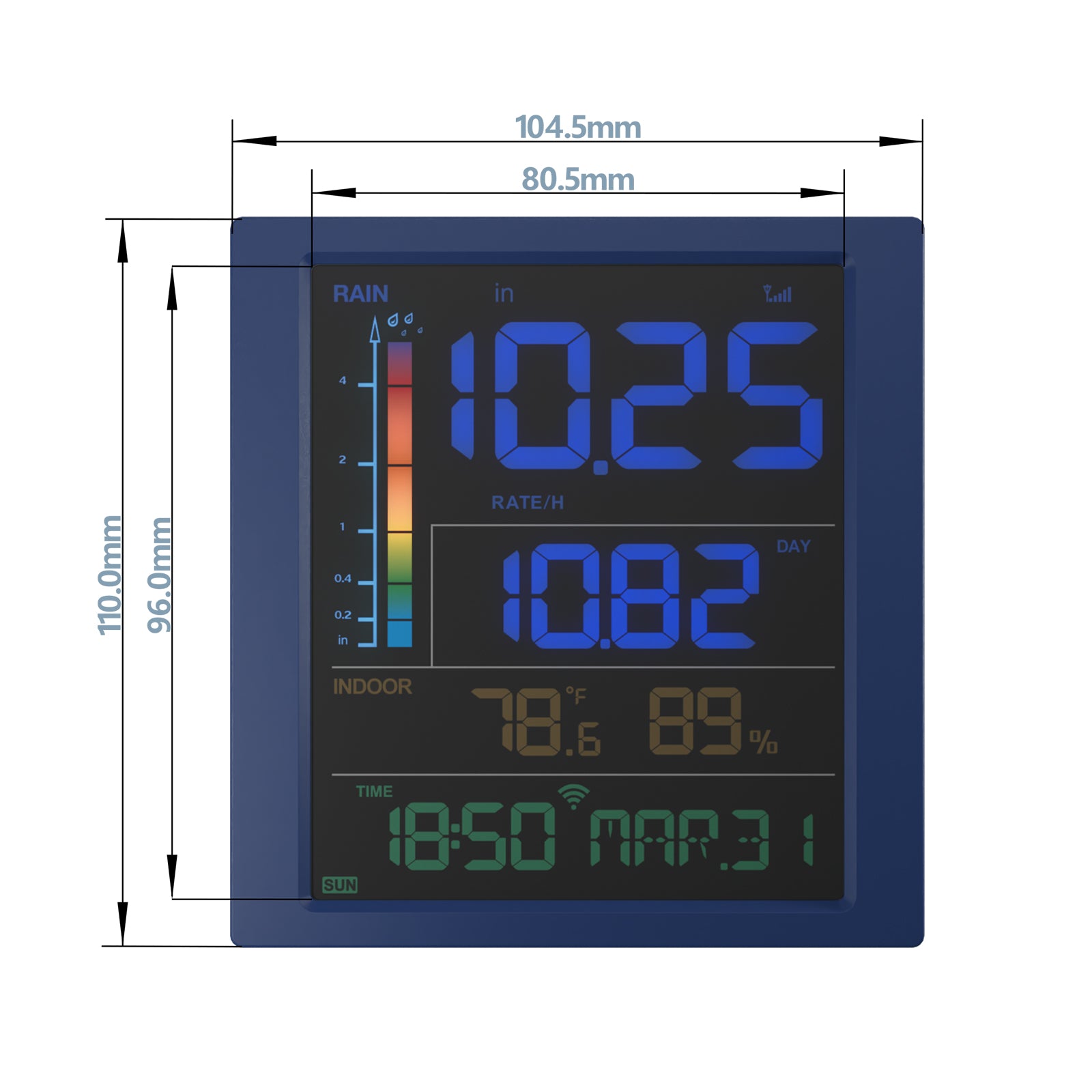

WN1700 Wi-Fi Display Console

• Built-in temperature, humidity, and barometric pressure sensors(Pressure data only uploads to the cloud, not shown on the 4.9'' LCD).

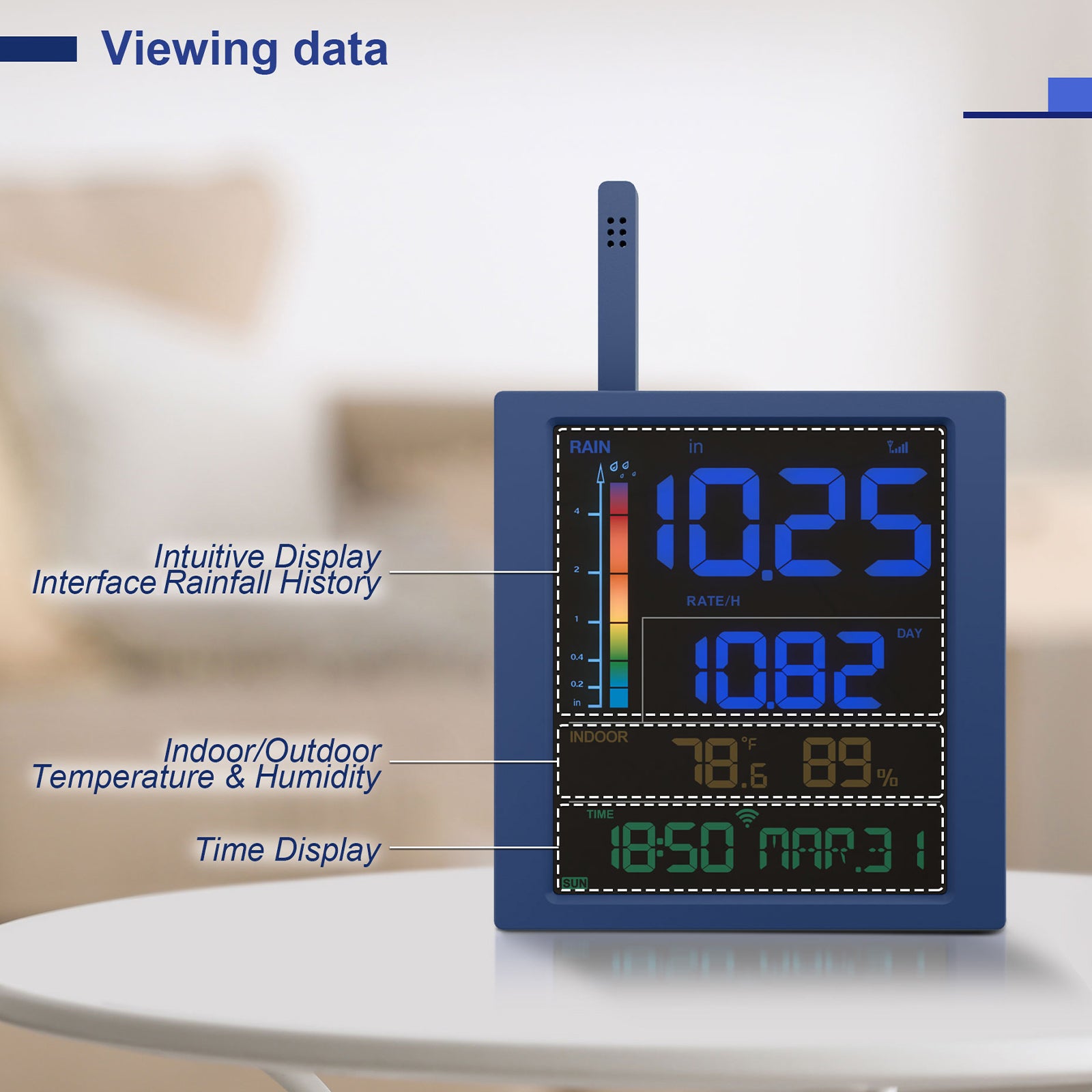

• LCD displays rainfall (rate, event, day, week, month, year and total), indoor/outdoor temperature & humidity, and up to 8 multi-channel temp & humidity sensors.

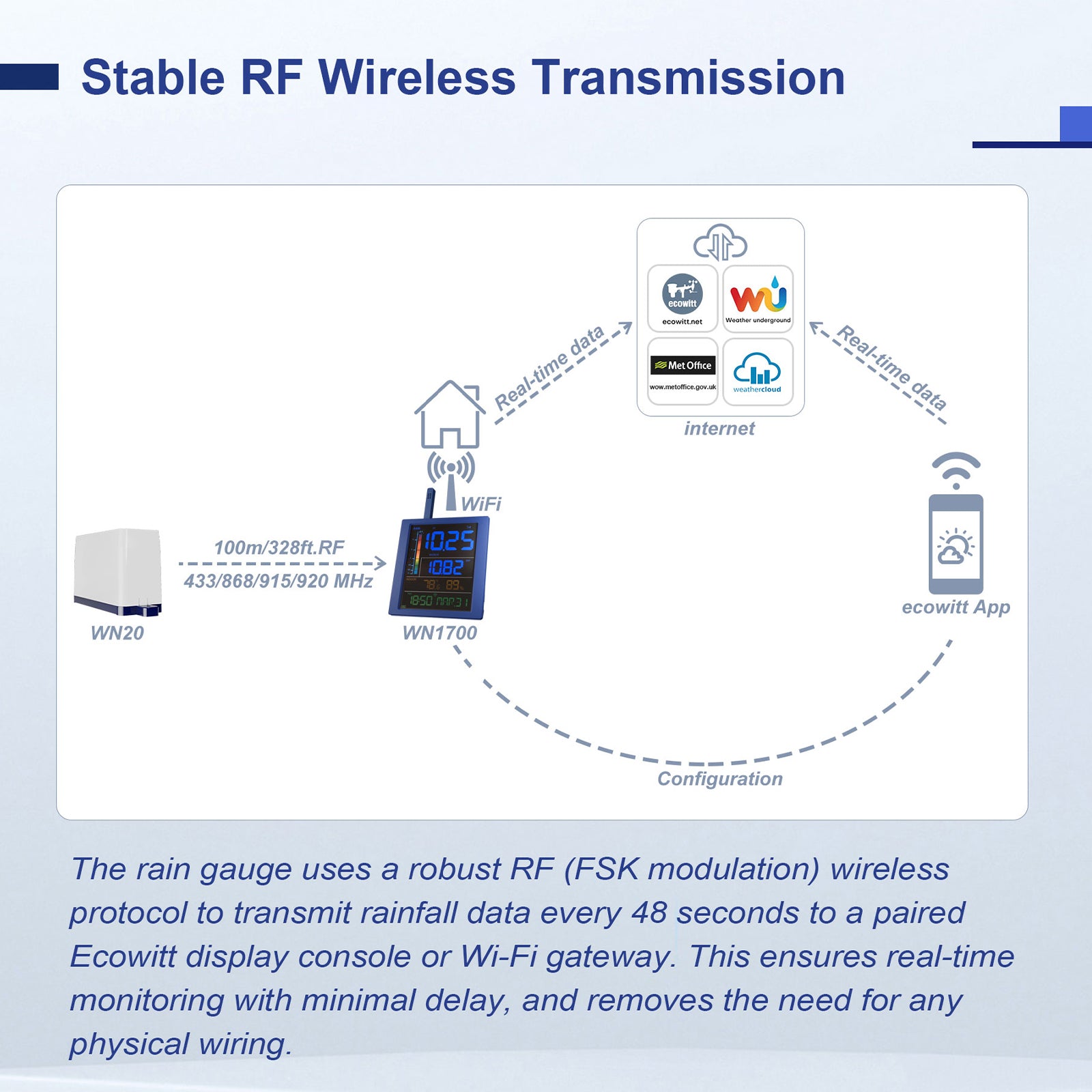

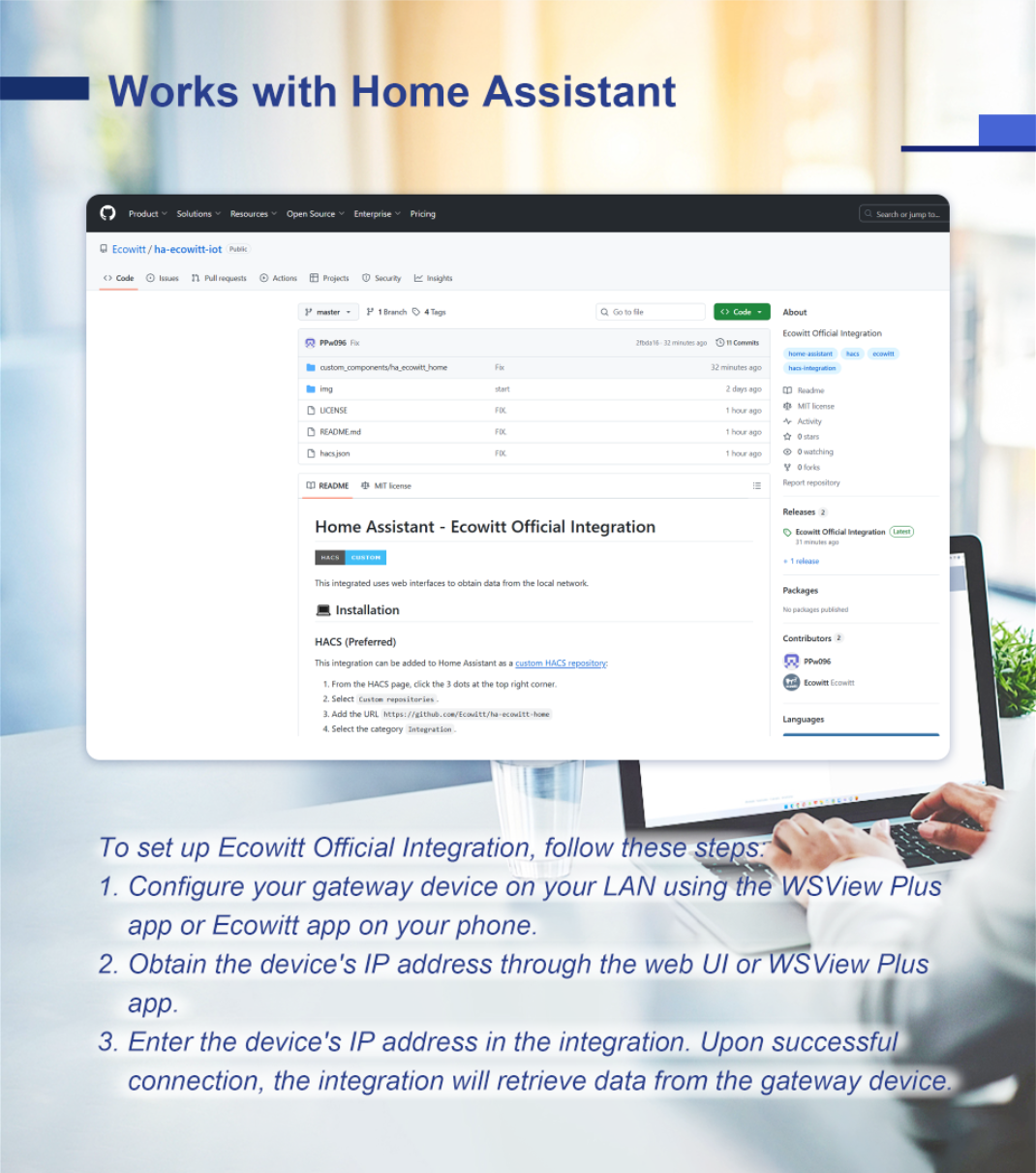

• Works as an IoT Wi-Fi gateway for real-time data upload to online weather platforms.

• Supports web-based configuration, sensor calibration, and auto timezone/NTP sync.
• Customizable units and adjustable backlight when powered via DC input.

Specifications

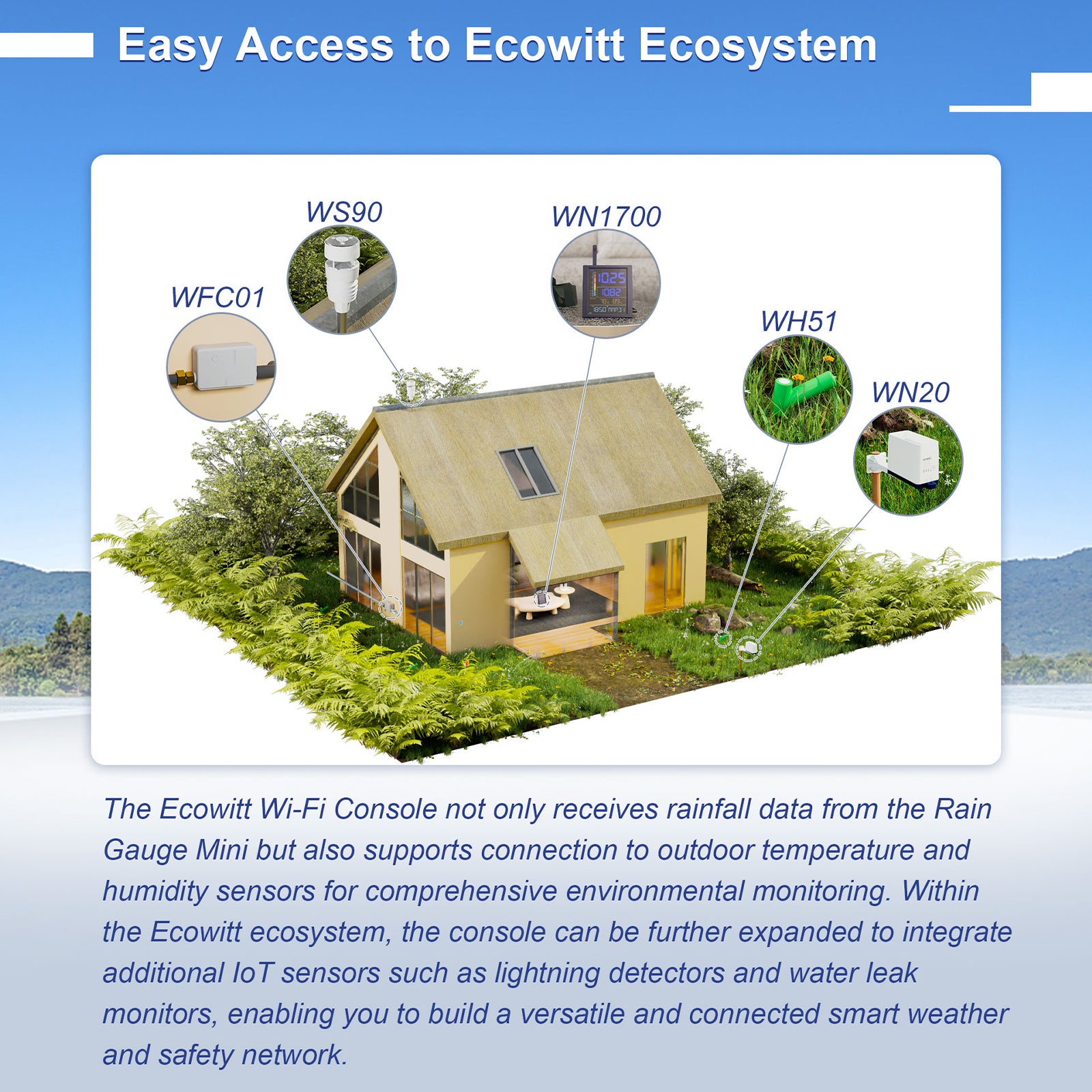

WN1700 Compatible Add-On Sensors & IoT Devices(sold separately)

• 1 - WS85 Sensor Array
• 1 - WS90 Sensor Array
• 1 - WS69/WN67 Sensor Array
• 1 - WS80 Sensor Array
• 1 - WS68 Sensor Array
• 1 - WH40 Rain Gauge
• 1 - WN20 Rain Gauge(included)
• 1 - WH57 Lightning Detector
• 1 - WH45/WH46 Air Quality Sensor
• 1 - WN32 Outdoor Temperature and Humidity Sensor
• 1 - WN32P Indoor Temperature, Humidity, and Pressure Sensor
• 4 - WH55 Leak Detector
• 4 - LDS01 Laser Distance Sensor
• 4 - Any combination of WH41 and WH43 Air Quality Sensor(PM2.5)
• 8 - WN35 Leaf Wetness Sensor

• 8 - Any combination of WN34L, WN34S, and WN34D Temperature Sensor
• 8 - Any combination of WN31/WN31_EP Temperature and Humidity Sensor and WN30 Temperature Sensor and WN36 Pool Thermometer
• 16 - Any combination of WH51 and WH51L Soil Moisture Sensor
• 16 - Any combination of WFC01 Water Timer, WFC02 Ball Valve, and AC1100 Smart Plug

Note: Please note that when there is more than one sensor array or a rainfall sensor, there is a priority for data reception:
Sensor array priority: WS85>WS90>WS80>WS68>WS69
Piezo rainfall priority: WS85>WS90
Traditional rainfall priority: WH40=WH40H>WH65=WN67=WS69>WN20

Services

APP: Ecowitt app;

Weather server support:
A. ecowitt.net (Default upload to this server)
B. wunderground.com
C. weathercloud.net
D. wow.metoffice.gov.uk
E. Customized servers

WebUI: 192.168.4.1

Packing Contents

1 x WN20 Wireless Rain Gauge Sensor
1 x WN1700_C Wi-Fi Display Console
1 x DC to USB Cable
1 x Power Adaptor
2 x Stainless Steel Self-tapping Screws (PWA 3.0 x 20mm)
1 x Stainless Steel Mesh
2 x User Manual
1 x Quick Start

Note:

1. Bundle version adds a power adapter compared to the single purchase.
2. Mounting bracket for WN20 is not included.
