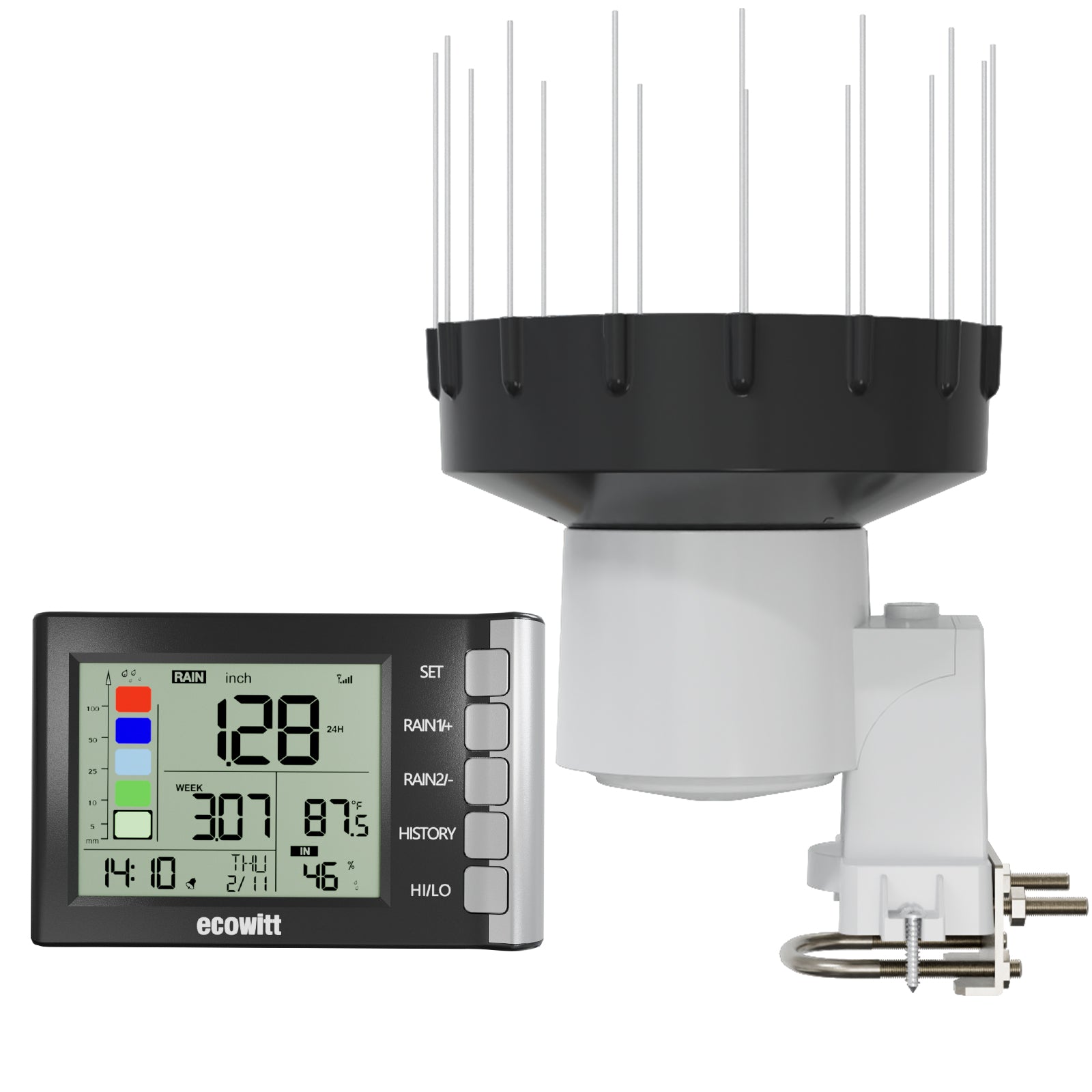

Ecowitt WH5360H / WH5370H Wireless Digital Rain Gauge with Thermometer, High Precision Self-Emptying Rain Collector with 3.5cm Enhanced Rain Funnel Design, Monitoring Rainfall
Couldn't load pickup availability
Pre-sale:
The WH5370H is pre-sale product. Orders will be shipped earliest by December 2025.
Key Features
WH5360_C & WH5370_C Rain Gauge Receiver(Wi-Fi not supported)
1. Main difference:
- The WH5370_C is compatible with the WN20 Mini rain gauge, while the WH5360_C is not. Apart from this, both models can connect to WH40 or WH40H sensors.
2. Date & Time:
- Calendar display: Month/Day, year range (2017-2099, default year 2019).
- Selectable 12/24-hour format.
- Built-in alarm clock with customizable settings.
3. Indoor Temperature & Humidity:
- Measures indoor temperature and humidity every 60 seconds.
- Records MAX and MIN temperature and humidity with timestamps.
- High and low temperature/humidity alerts.
4. Rain Measurement:
- Receives data from the wireless rain sensor(WN20/WH40H/WH40) every 49 seconds.
- Rain 1 displays: Rain Rate, Rain Event, 1-Hour, 24-Hour rainfall data.
- Rain 2 displays: Daily, Weekly, Monthly, Yearly, and Total rainfall.
- Rain Rate/Event data displayed in graph format.
- Rain Rate and Event alerts.
5. Rainfall History:
- Stores up to 24 months of rain history and 730 days of rainfall records.
WH40H:
1. Measures rainfall amount every 49 seconds.
2. Long wireless range, up to 328 feet (100 meters) in open areas.
3. 3.5cm extension height rain bucket funnel;
4. Coming with 15 bird spikes prevents birds from nesting in the rain collector.
Specifications
| Model | WH5360_C | WH5370_C |
| Name | Digital Rain Gauge Receiver | |
| Transmission distance(from WN20 in open field) | \ | 100m(328 ft) |
| Transmission distance(from WH40(WH40H) in open field) | 100m(328 ft) | |
| Radio Frequency | 915/868/433MHz depending on location (North American:915MHz; Europe:868MHz; Other areas:433MHz) | |
| Indoor temperature and humidity data measuring interval | 60s | |
| Indoor temperature measuring range | -9.9˚C–60˚C (14℉–140℉) | |
| Indoor temperature accuracy | ± 1°F / ±0.56°C | |
| Indoor humidity measuring range | 10%–99% | |
| Indoor relative humidity accuracy (at 25°C): | ±6% for 30–80% RH | |
| ±5% for 1–29% & 80–99% RH | ||
| Power supply | 3xAA 1.5V Alkaline batteries (not included) | |
| Battery life | 12 months | |
| Model | WH40H |
| Name | Wireless Self-emptying Rain Gauge Sensor |
| Dimensions | 189*189*194mm |
| Weight | 583.3g |
| Material of Plastic Casing | ASA+PC |
| Rainfall Metering Range | 0mm to 9999mm |
| Rainfall Metering Accuracy | ± 5% |
| Rainfall Metering Resolution | 0.1 mm |
| Data reporting Interval | About 49 seconds |
| RF Connection Frequency | 920/915/868/433MHz (depending on local regulations) |
| RF Wireless Range (in open areas) | Over 100 meters (328 ft.) |
| Operating Temperature Range | -40°C to 60°C(-40℉ to 140℉) |
| Protection Rating | IPX4 |
| Power Supply | 1*AA battery (not included) |
| Battery Life | 1 year |
Package List
1 x WH5360_C or WH5370_C Base Station
1 x WH40H Rain Collector
1 x User Manual
Note: The stainless steel pole and batteries are not included.
 | |
|---|---|
| Built-in sensor measurement | |
Rain Gauge |
|
Indoor Thermo-Hygrometer (Temp & Humidity) |
|
| Display Content | |
Rainfall |
|
Indoor Temperature |
|
| Console Features | |
Screen |
|
Manage sensor on console |
|
Built-in a Wi-Fi Gateway |
|
Manage sensor on app |
|
| Power | |
Power cord supply |
|
Battery supply |
|
| Connection & Data | |
RF Wireless protocol |
|
Compatibility Instructions
for all ecowitt network consoles
Please refer to the table to choose the correct sensors and consoles before checkout.
Note:
1) "1/4/8/16" = max number of sensors supported per console (excluding accessories).
2) Upload only = sensor readings shown only in the Ecowitt app and cloud (www.ecowitt.net).
3) Firmware (e.g. V1.9.6 / V2.0.2) = gateway/console must run this version or newer.
