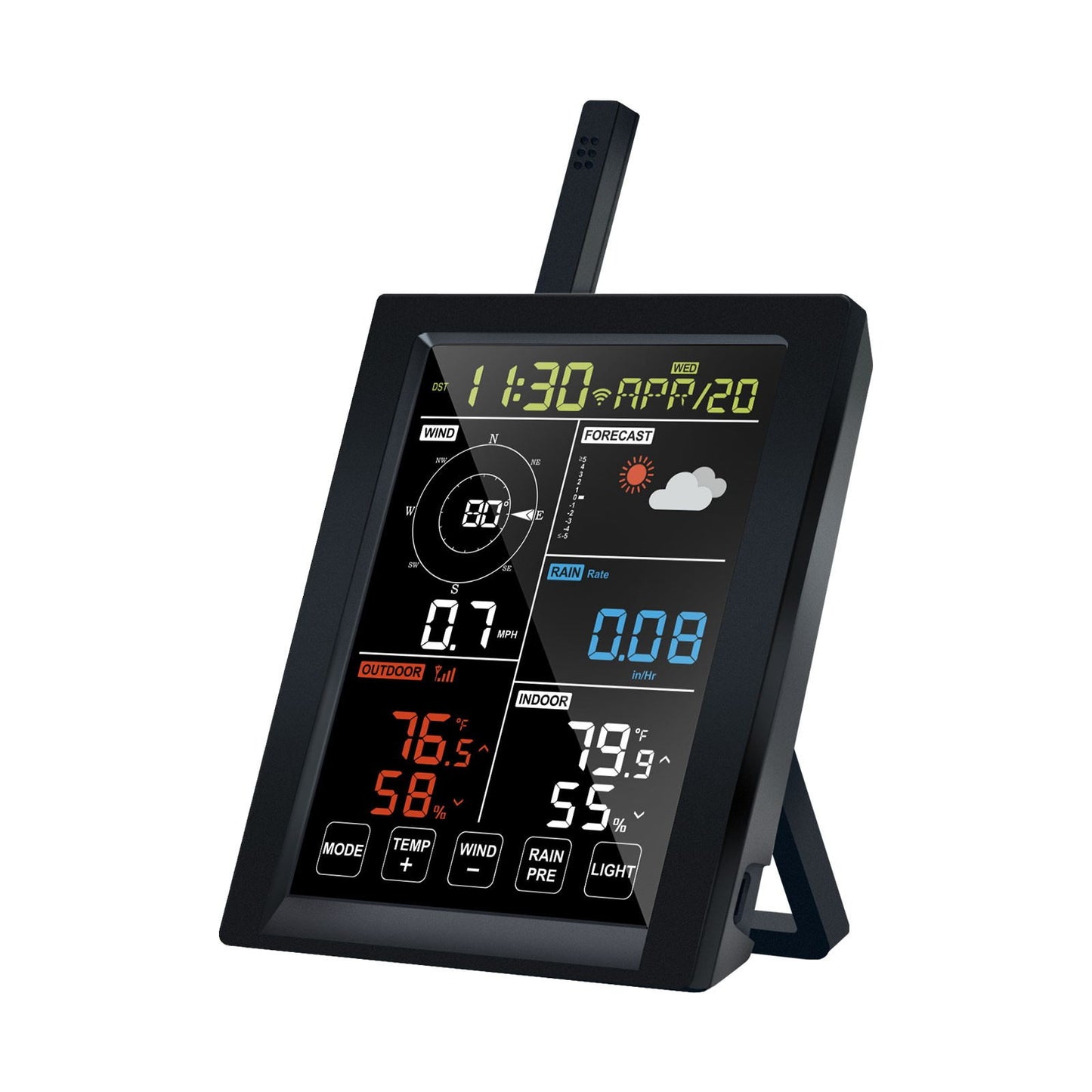

WN1981 Weather Station 5.3'' LCD Touchscreen Display with 7-in-1 Outdoor Solar Powered Anti-vibration Haptic Rainfall Sensor

Regular price $219.99 USD
Regular price Sale price $219.99 USD
Shipping is calculated at checkout. (For EU customers: For parcels shipped via [Standard]YunExpress / 4PX / others, VAT is included.)
Packaged version & Sensor or gateway link frquency: North America MHz 915
Regular price $219.99 USD
Regular price Sale price $219.99 USD

Product description of WN1981

Features

Sensor: Piezoelectric rain gauge; Ultrasonic wind speed, gust speed,

and wind direction; Temperature; Humidity; Solar light intensity and UV index;

Display: WLAN gateway; Barometric; Temperature; Humidity;


Although WN1980 could be as Wi-Fi gateway to pair with all ecowitt sensors and upload their data to Internet, only some sensors' data could display on WN1980 console, such as 8 channels WN30/WN31/WN36, WN32 outdoor sensor and WH40 rain gauge sensor. By the way, WS90's temperature, humidity, wind speed/direction, rainfall data and WS68's wind speed/direction data could display on WN1980, while their UV&Light data Not.



Services

Website page: ecowitt.net; 192.168.4.1;

APP: Ecowitt;

Weather servers support: Wunderground; Weathercloud; WeatherObservationWebsite; Customized (Homeseer; Homeassistant;)



Specifications (WS90 Sensor)

Measurement Range Accuracy Resolution
Wind speed 0m/s to 40m/s <10m/s, ±0.5m/s; ≥10m/s, ±5% 0.1m/s
Wind direction 0° to 359° <2m/s, ±10°; ≥2m/s, ±7°
Temperature -40°C to 60°C ±0.3°C (± 0.6°F) 0.1°C (± 0.1°F)
Humidity 1% to 99% ±3.5% 0.01
Light 0Klux to 200Klux ±15% 0.1Klux
UVI 1~15 ±2 1
Rain 0~9999 TBA 0.1mm

Sensor (backup): 2 x AA 1.5V battery (not included)

Sensor solar panel (built-in): 6.5V/4mA


Specifications (WN1980_C display)

Measurement Range Accuracy Resolution
Barometric 300 to 1100 hPa (8.85 to 32.5 inHg) ± 5hPa 0.1hPa (0.01 inHg)
Temperature (Indoor) -10°C to 60°C (-14°F to 140°F) ± 0.3°C (± 0.6°F) 0.1°C (0.1°F)
Humidity (Indoor) 1% to 99% ± 3.5% 1%

Power supply: Type-C power cable

Backup power: 2 x AA batteries (Support Min. 48 hours working)



Transmission between gateway and sensor

Transmission distance in open field: 150 m (500 ft.) depend on environment

RF frequency: 433/868/915/920 MHz depending on location

Sensor reporting interval: 8.8 seconds



Transmission between gateway and Wi-Fi router

Transmission distance in open field: 50 m (165 ft.) depending on router and environment

RF Frequency: 2.4 GHz

WLAN and Ethernet: 802.11 b/g/n

Updates on the Internet: Customize 1-5 minutes (recommend 1 minute)


Parts List

1* WS90 sensor

1* WN1980_C Display/Gateway/Console

1* Type-C power cable

1* User manual



Additional or optional or extra or compatible with sensors (sold separately):

One WN1980 supports one WS90 sensor;

One WN1980 supports one WS80 sensor;

One WN1980 supports one WS69 sensor;

One WN1980 supports one WS68 sensor;

One WN1980 supports one WH40 sensor;

One WN1980 supports one WN32 sensor;

One WN1980 supports one WH45 sensor or WH46 sensor;

One WN1980 supports one WH57 sensor;

One WN1980 supports up to four WH41 sensors or WH43 sensors;

One WN1980 supports up to four WH55 sensors;

One WN1980 supports up to eight WN30 sensors or WN31 sensors or WN36 sensors;

One WN1980 supports up to eight WN34 sensors or WN34S sensors or WN34L sensors or WN34D sensors;

One WN1980 supports up to eight WH51 sensors or WH51L sensors;

One WN1980 supports up to sixteen WFC01 sensors or AC1100 sensors;

Compatibility Instructions

for all ecowitt network consoles

Please follow the table to make sure you choose the right sensors and concoles before check out.
Note: The "1/4/8/16" means 1 console supports 1/4/8/16 sensors
( excluding accessories )

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mike N.
Nice price, no instructions

I upgraded from the Ecowitt GW1100 Wi-Fi Weather Station Sensor Gateway and was excited to have more functionality. Both the WN1980 display and WS90 weather station came with NO instructions at all. I'm a weather enthusiast and have had weather stations for 50+ years, so I was able to figure out how to set it up. But a novice retiree would definitely have some issues. It still was a bit dicey to setup and I eventually got it.
PROS: Nice display and weather station for the price with a lot of features and able to add a other Ecowitt devices.
CONS: Instructions are non-existent and setup it horrible. Mounting is not a standard antenna pole, and you have to purchase a PVC or smaller 1" mounting pole. I've had a haptic sensors before (rain, wind) with my WeatherFlow Tempest Weather System, so I know what to expect as not so accurate. But waiting to see after a few days how the Ecowitt does with wind and rain.
Other than that not bad for the price and nice compact weather system.
