Pre-sale: 802.3af to USB-C 5V PoE Splitter for GW3000/GW3010 Wi-Fi Hub
Couldn't load pickup availability
Regarding shipment: the pre-order will be dispatched at the end of April.
Product Overview

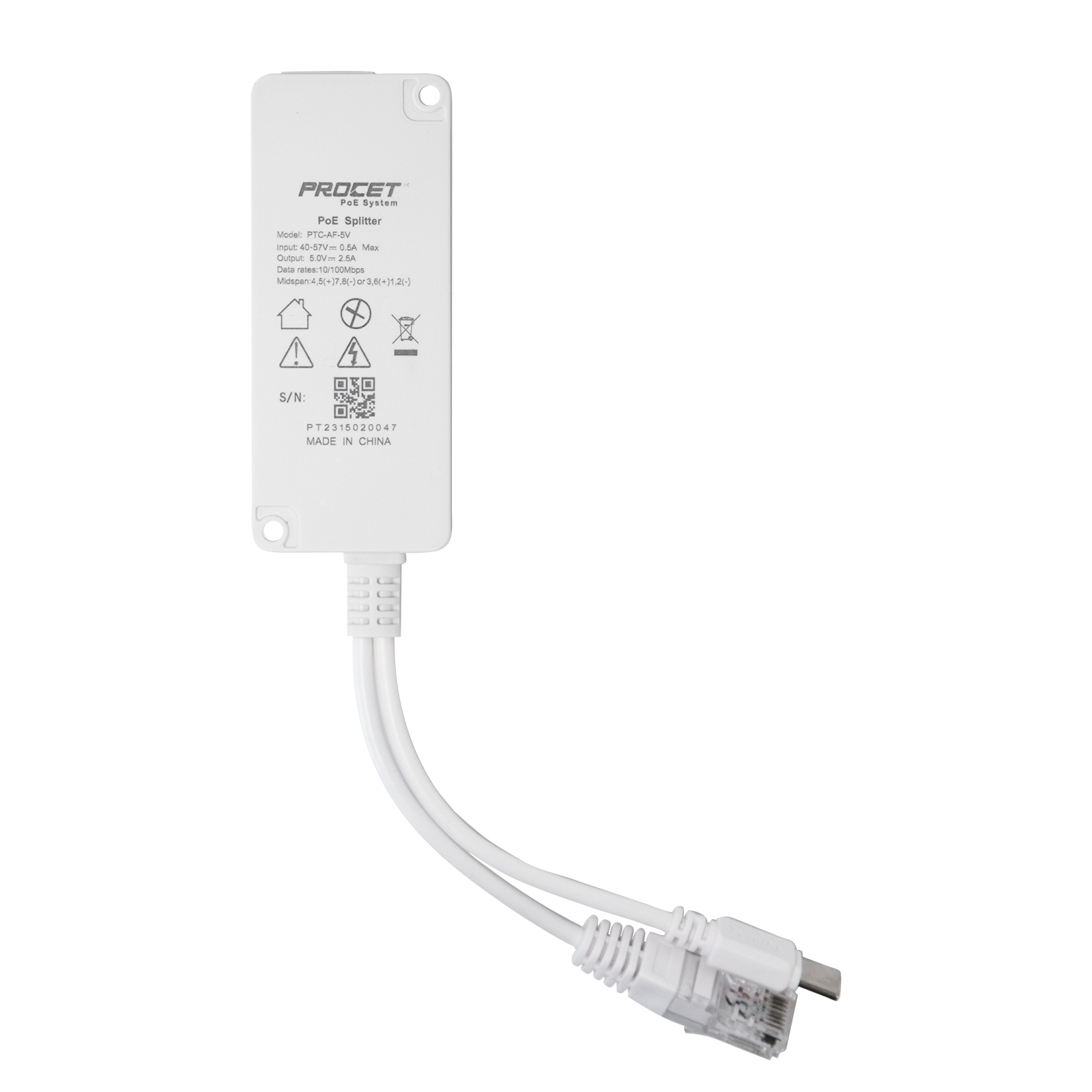

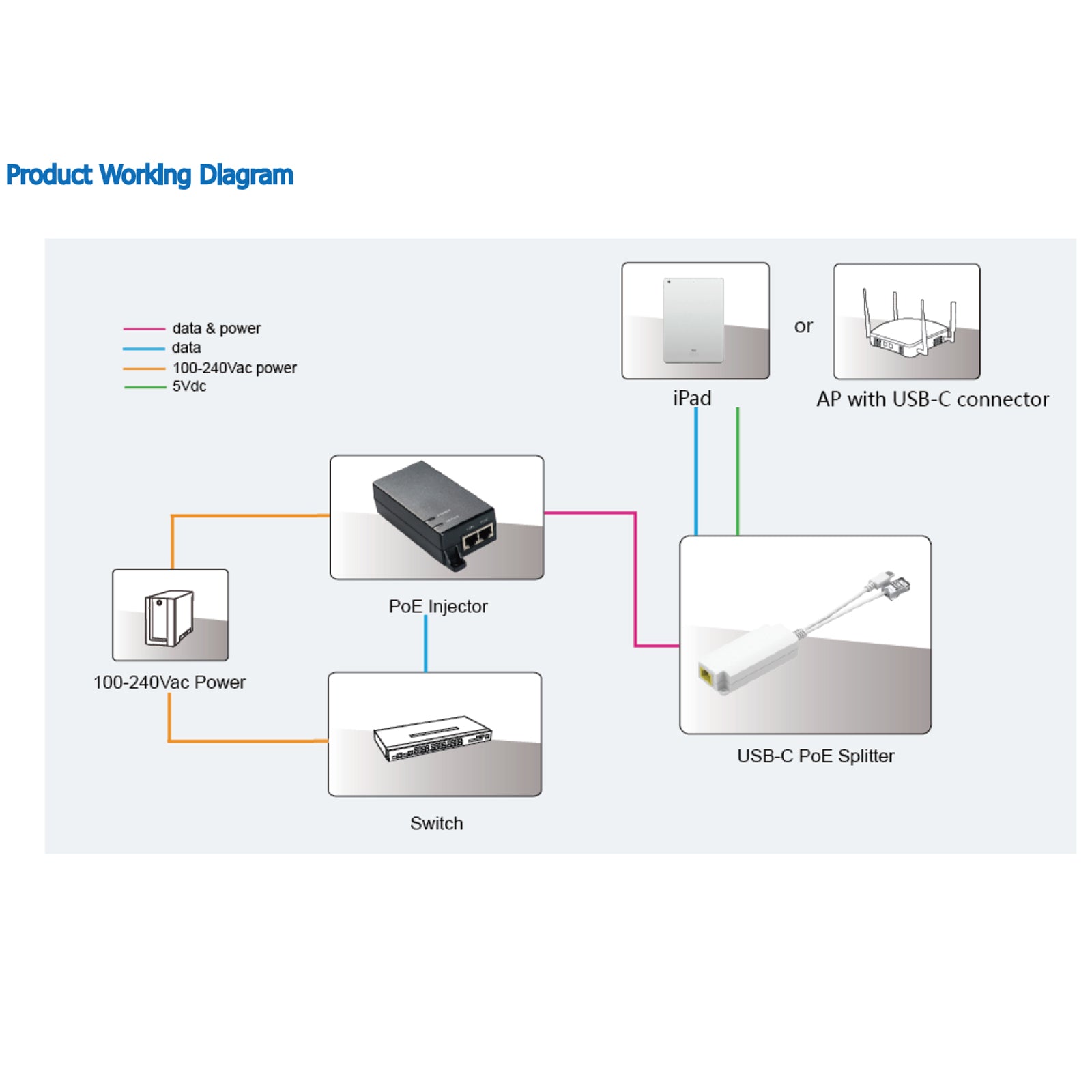

PTC-AF-5V is an indoor rated PoE USB-C splitter specially designed for complex backhaul and networking application. Enclosed in an IP40 fire retardant plastic case with compact design. It works as a converter to get power and data from PoE injector or PoE Switch of 802.3af/at over RJ45 connector then separate power and data to PDs. The output power is 5Vdc, 2.5A(max) via USB-C Male connector to PDs. Such as computers, iPad, Macbook, Google Wifi, Tablet PC, and other USB-C devices. PoE signal into a separate data signal at 10/100Mbps. For planning purposes, the effective distance is 100 meters via Cat5e/Cat6 cables from Ethernet data source to PD.
Specification
| Product Info | PTC-AF-5V, 5Vdc/2.5A/10/100Mbps)/PoE to USB-C |
| Standard | IEEE802.3 10Base-T Ethernet - IEEE802.3u 100Base-Tx Fast Ethernet - Support PoE injector with IEEE802.3af/at - RoHS Compliance - WEEE Compliance |
| Input & Output | Input :40-57Vdc PoE injector/PoE Switch 802.3af/at - Input Power Pins: 4/5(+), 7/8(-) or 3/6(+),1/2(-) or 3/6(-),1/2(+) - Output: 5Vdc 2.0A @0℃ to 55℃, 5Vdc 2.5A(max) @0℃ to 40℃, - Data Speed: 10/100Mbps |
| Working Environment | Operating Temperature: 0℃ to 40℃ - Operating Humidity: 20% to 80%, non-condensation - Storage Temperature: -20℃ to 70℃ - Storage Humidity: 10% to 90%, non-condensation - Operating Altitude: up to 2000 meters |

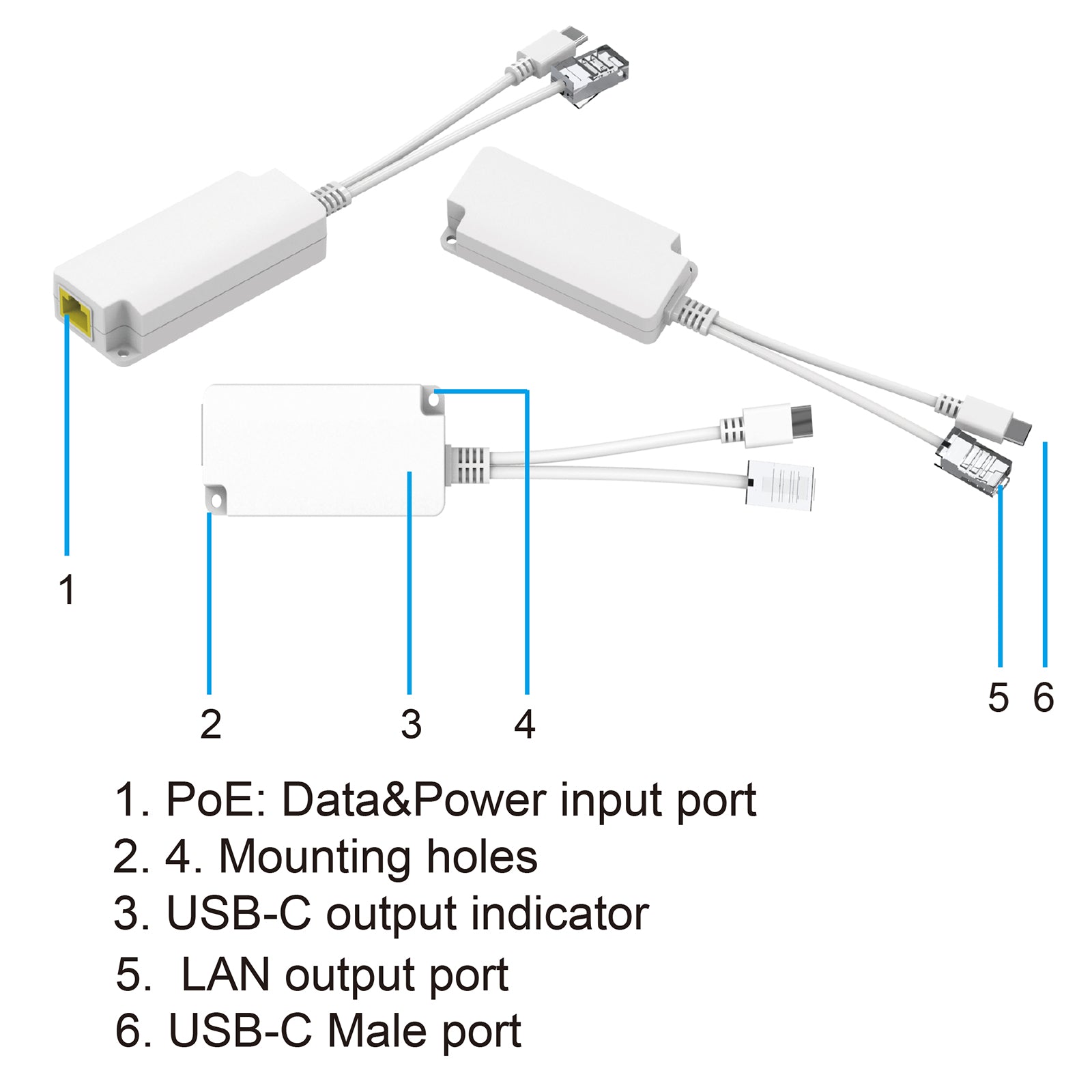

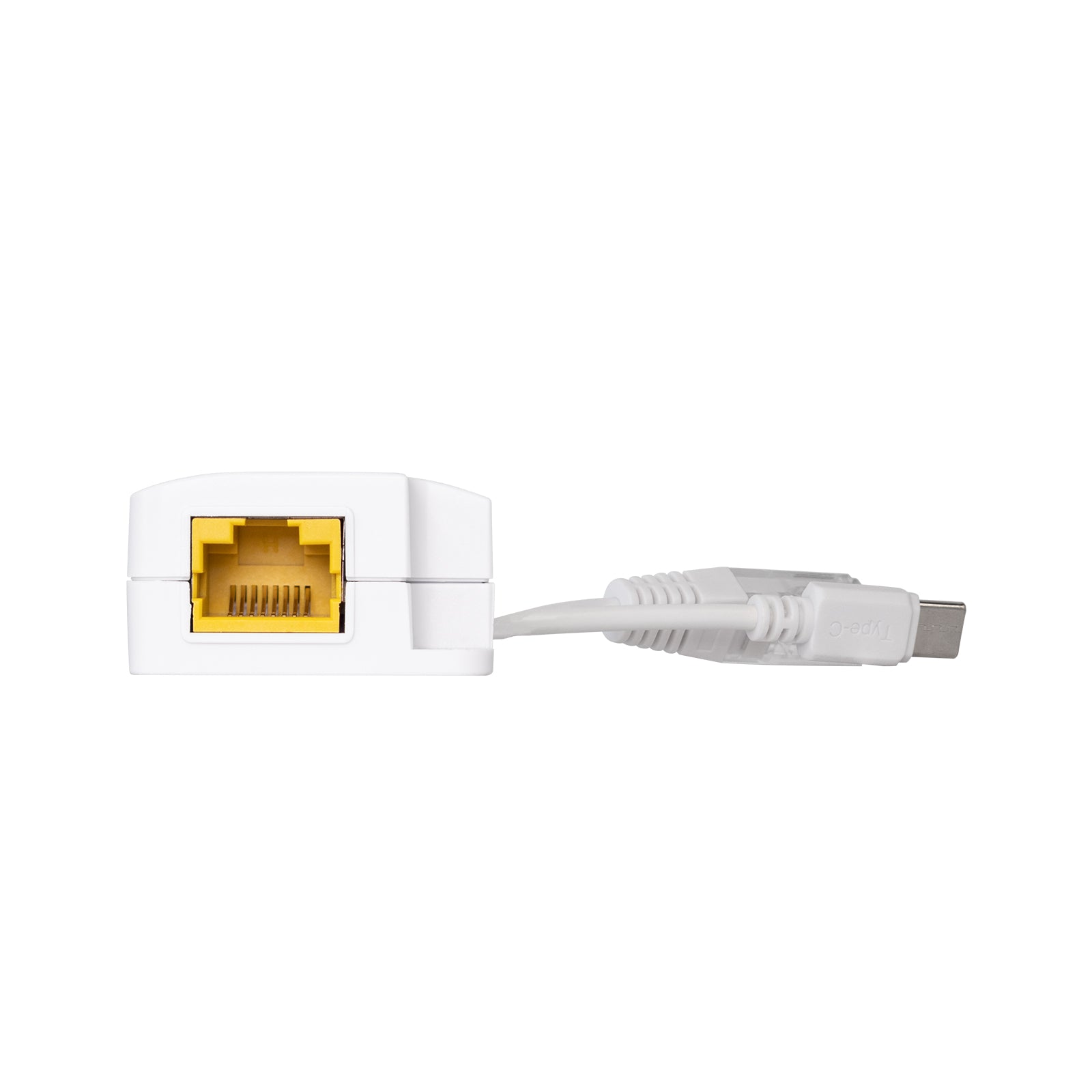

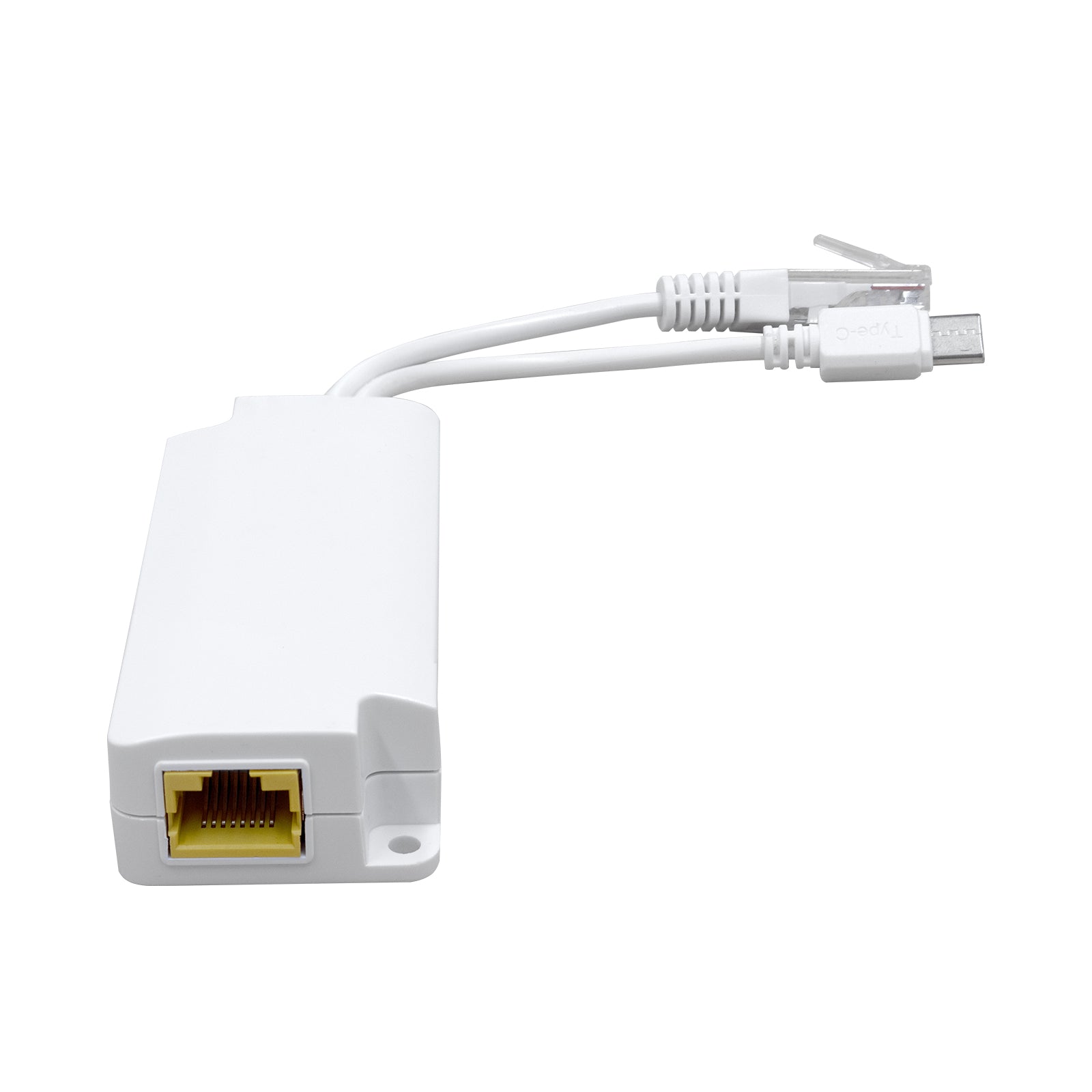

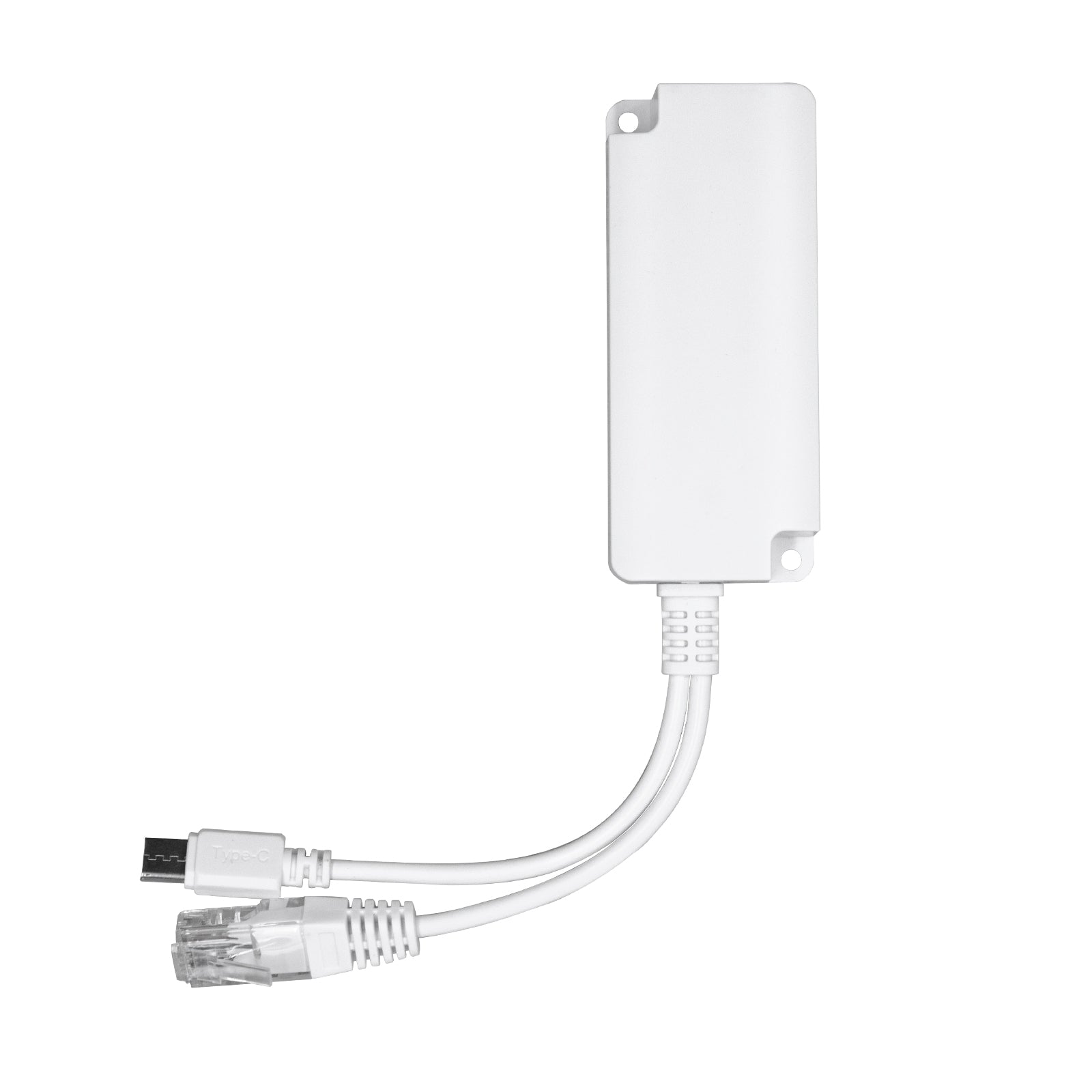

| Mechanical Characteristics | Case: Plastic - Color: white - Mounting: Wall-mounted - IP Rated: IP40 - Size: (82.3+124.81)mm X 34.7mm X 19mm - Weight: 200g - Connectors: RJ45 Female*1, RJ45 Male*1 USB-C Male*1 |
| Safety Approvals | CE, FCC |
| EMI | FCC CFR47 Part 15, EN55032, EN55035 |
| EMS | - IEC61000-4-2(ESD) Air discharge: 8kV, Contact discharge: 4kV, Performance B - IEC61000-4-3(RS) 80~1000MHz,3V/m,80%AM(1kHz), Performance A - IEC61000-4-4(EFT) AC Power line: 1kV, Performance B DC Power line:0.5kV,Performance B Signal line:0.5kV, Perfromance B |
| Immunity | - IEC60068-2-6(Vibration) - IEC60068-2-27(Impact) - IEC60068-2-32(Free Fall) |
| LED Indicator | Power output Indicator: Green |
| Packing | PTC-AF-5V Manual x 1 |
Compatibility Instructions
for all ecowitt network consoles
Please refer to the table to choose the correct sensors and consoles before checkout.
Note:
1) "1/4/8/16" = max number of sensors supported per console (excluding accessories).
2) Upload only = sensor readings shown only in the Ecowitt app and cloud (www.ecowitt.net).
3) Firmware (e.g. V1.9.6 / V2.0.2) = gateway/console must run this version or newer.
