WN69SDI Weather Station with SDI-12 Interface and Protocol
Couldn't load pickup availability
Features

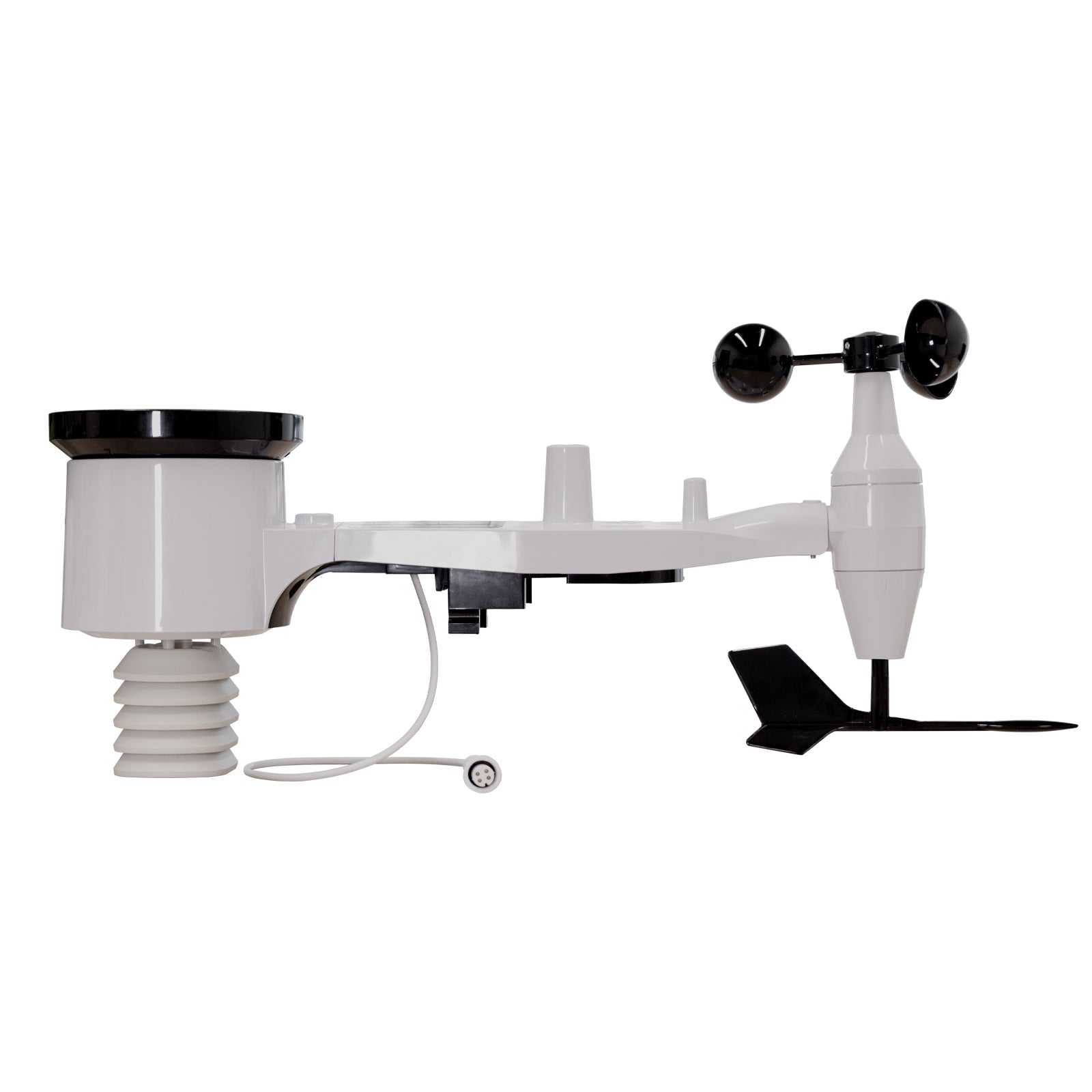

The WN69SDI is a wired SDI-12 version of the WS69 7-in-1 weather sensor. The solar panel and RF transmission modules have been removed, and the power connection is replaced with an SDI-12 interface, making it easier to integrate into professional data acquisition systems.
Wind measurements follow WMO (World Meteorological Organization) data format standards, with wind speed and direction measured and output once per second. The sensor measures outdoor temperature and humidity, wind direction, rainfall, wind speed, wind gust, UV, and light, providing comprehensive environmental data.

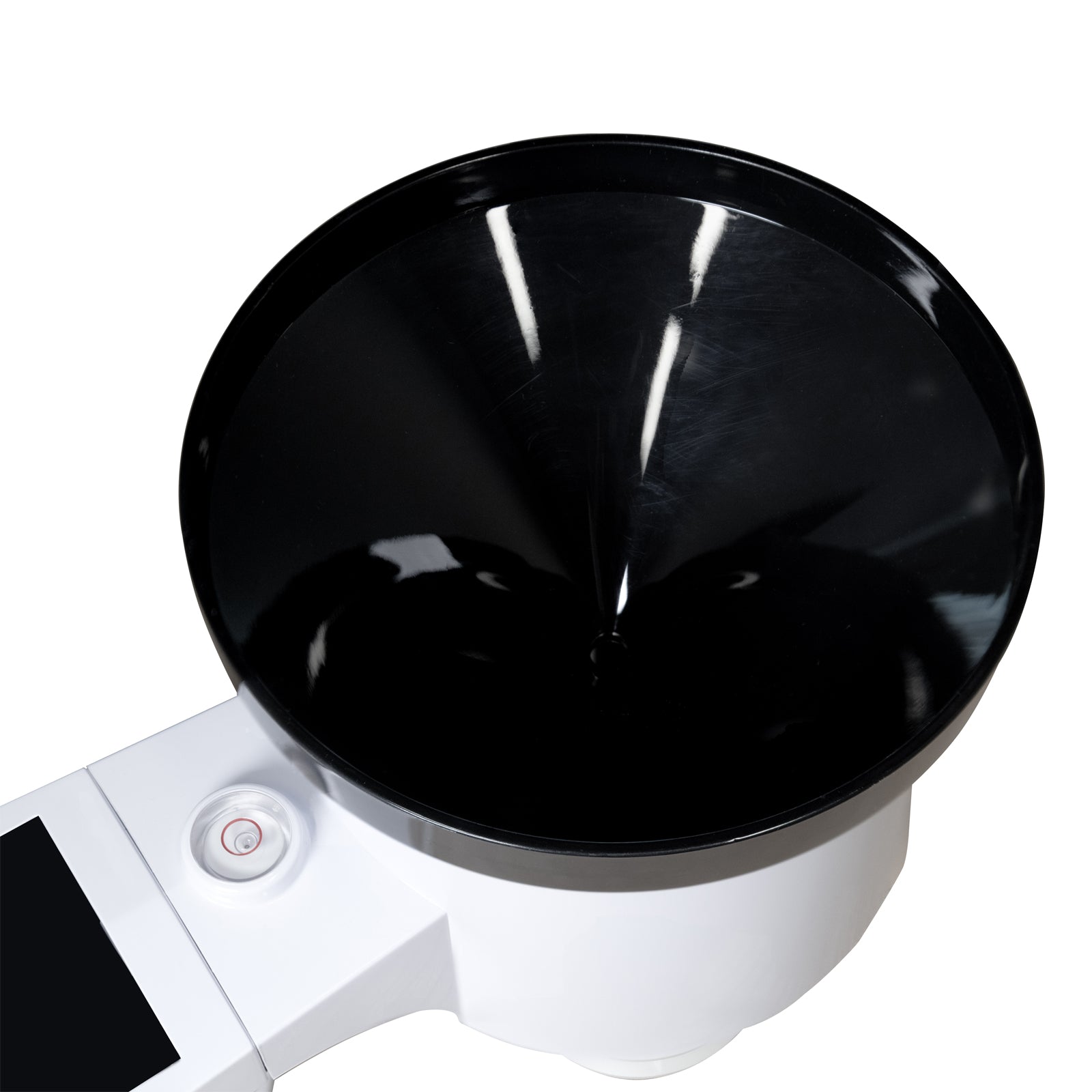

The rain sensor utilizes a precision tipping-bucket mechanism that tips after every 0.01 inch (0.254 mm) of accumulated rainfall, ensuring accurate precipitation measurement. The anemometer is capable of measuring extreme wind speeds up to 50 m/s, making it suitable for demanding weather conditions.
- Integrated Measurement: Captures essential environmental data—including air Pressure, temperature, and humidity—alongside wind speed, direction, rainfall, UV, and light intensity.
- Enhanced Sensing: Upgraded with a high-precision thermo-hygro-barometer sensor for comprehensive atmospheric data.
- Professional Reliability: Features a wired connection for stable data transmission, eliminating RF interference and range limitations.
Industry Standard: Supports SDI-12 protocol for easy communication with third-party controllers and monitoring software.
Regarding power supply and lightning protection for installation:
Power supply: This WN69SDI is powered via the SDI-12 interface, with an operating voltage range of 6 to 24 V. Do not attempt to install batteries.
Installation & Lightning Protection: Please refer to: Lightning Protection Guidelines. Sensor damage, due to lack of grounding-protection against lightning ESD discharge, is not covered by warranty.
Specification
| Model | WN69SDI |
| Name | Outdoor Sensor array with built-in: Thermo-hygrometer / Rain Gauge / Wind Speed Sensor/ Wind Direction Sensor, Light and UV sensor, air pressure sensor, SDI-12 Output |
| Dimensions | 475×118×207(mm) |
| Weight | 634(g) |
| Material of Plastic Casing | PC+ABS |
| Temperature Metering Range | -40°C to 60°C(-40℉ to 140℉) |
| Temperature Metering Accuracy | ±1°C (± 1.8°F) |
| Temperature Metering Resolution | 0.1°C (0.2°F) |
| Humidity Metering Range | 1%RH to 99%RH |
| Humidity Metering Accuracy | ±5%RH |
| Humidity Metering Resolution | 1%RH |
| Rainfall Metering Range | 0mm to 9999mm |
| Barometric Pressure Metering range | 300 to 1100 hPa (8.85 to 32.5 inHg) |
| Barometric Pressure Metering accuracy | ±5 hPa |
| Barometric Pressure Metering resolution | 0.1 hPa (0.01 inHg) |
| Rainfall Metering Accuracy | ± 10% |
| Rainfall Metering Resolution | 0.3 mm (for volume < 1,000 mm); 1 mm (for volume ≥ 1,000 mm |
| Wind Speed Metering Range | 0 to 50 m/s |
| Wind Speed Metering Accuracy | ± 1 m/s (speed < 10 m/s); ± 10% m/s (speed ≥ 10 m/s) |
| Wind Speed Metering Resolution | 0.1m/s |
| Wind Metering Interval | 2s |
| Gust wind speed | Maximum wind speed recorded in the past 16 seconds |
| Wind direction Metering Range | 0° to 359° |
| Wind direction Metering Accuracy | ± 15° |
| Wind direction Metering Resolution | 1° |
| Light Metering Range | 0Klux to 300Klux |
| Light Metering Accuracy | ±25% |
| Light Metering Resolution | 0.1Klux |
| UV Metering Range | 1 to 15 |
| UV Metering Accuracy | ±2 |
| UV Metering Resolution | 1 |
| Operating Temperature Range | -40°C to 60°C(-40℉ to 140℉) |
| Protection Rating | IP44 |
| Power Supply | DC6-12V/1A Power adapter (not included) |

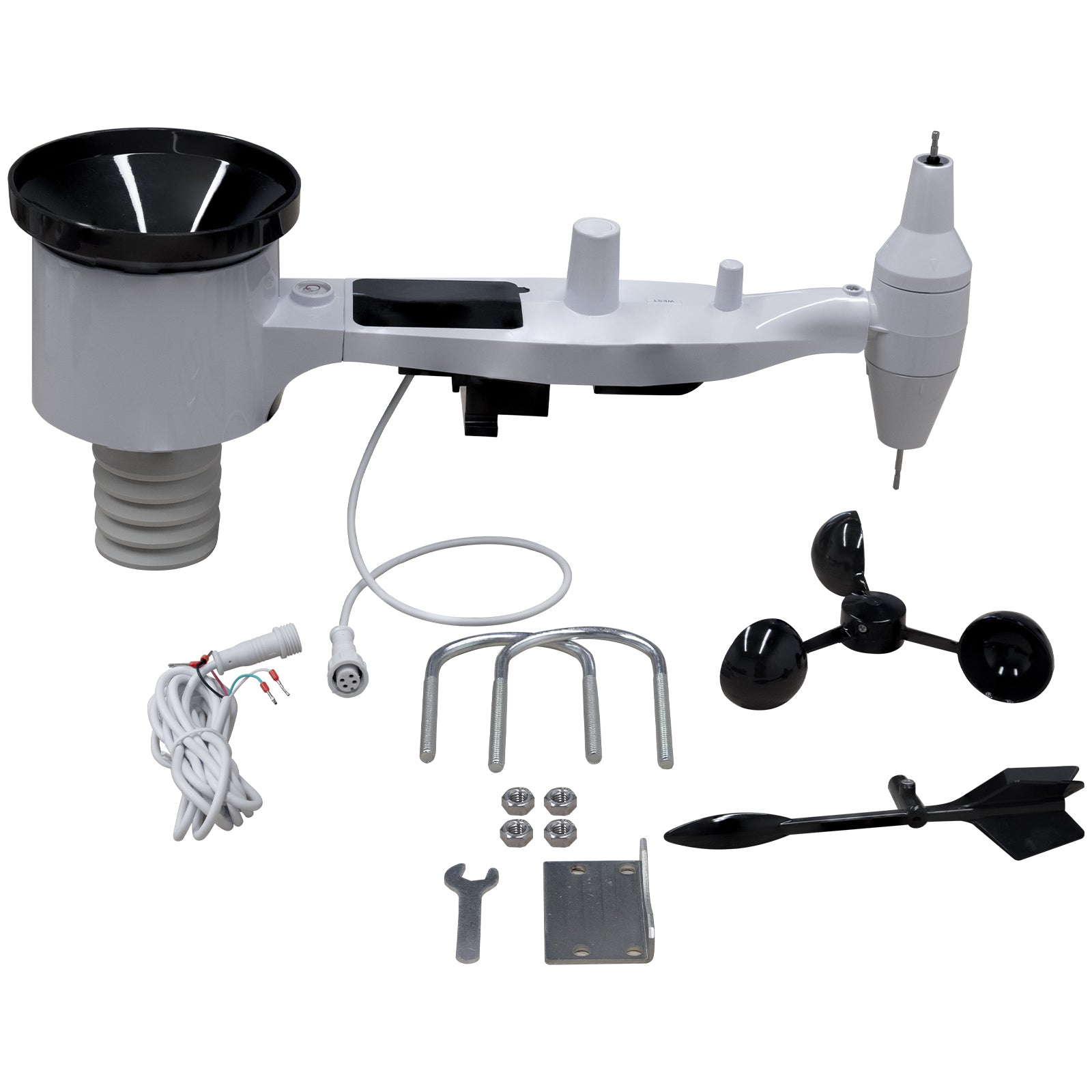

Package Contents
1 x WN69SDI Outdoor Sensor Body (Thermo-hygrometer / Rain Gauge / Light and UV sensor)
1 x Wind speed cup
1 x Wind vane
2 x U-Bolts for mounting on a pole (Fits poles with a diameter of 1.2–2 inches, pole not included)
4 x Threaded nuts for U-Bolts (M6 size)
1 x Metal mounting plate to be used with U-Bolts
1 x Wrench for M6 bolts
1 x SDI-12 Communication Cable (Extension Cable), 2 m
1 x User manual
Note:
- The USB/TTL-SDI12 VER5.2 module and USB Type-A to USB Type-B cable are not included. Please purchase separately.
Compatibility Instructions
for all ecowitt network consoles
Please refer to the table to choose the correct sensors and consoles before checkout.
Note:
1) "1/4/8/16" = max number of sensors supported per console (excluding accessories).
2) Upload only = sensor readings shown only in the Ecowitt app and cloud (www.ecowitt.net).
3) Firmware (e.g. V1.9.6 / V2.0.2) = gateway/console must run this version or newer.
