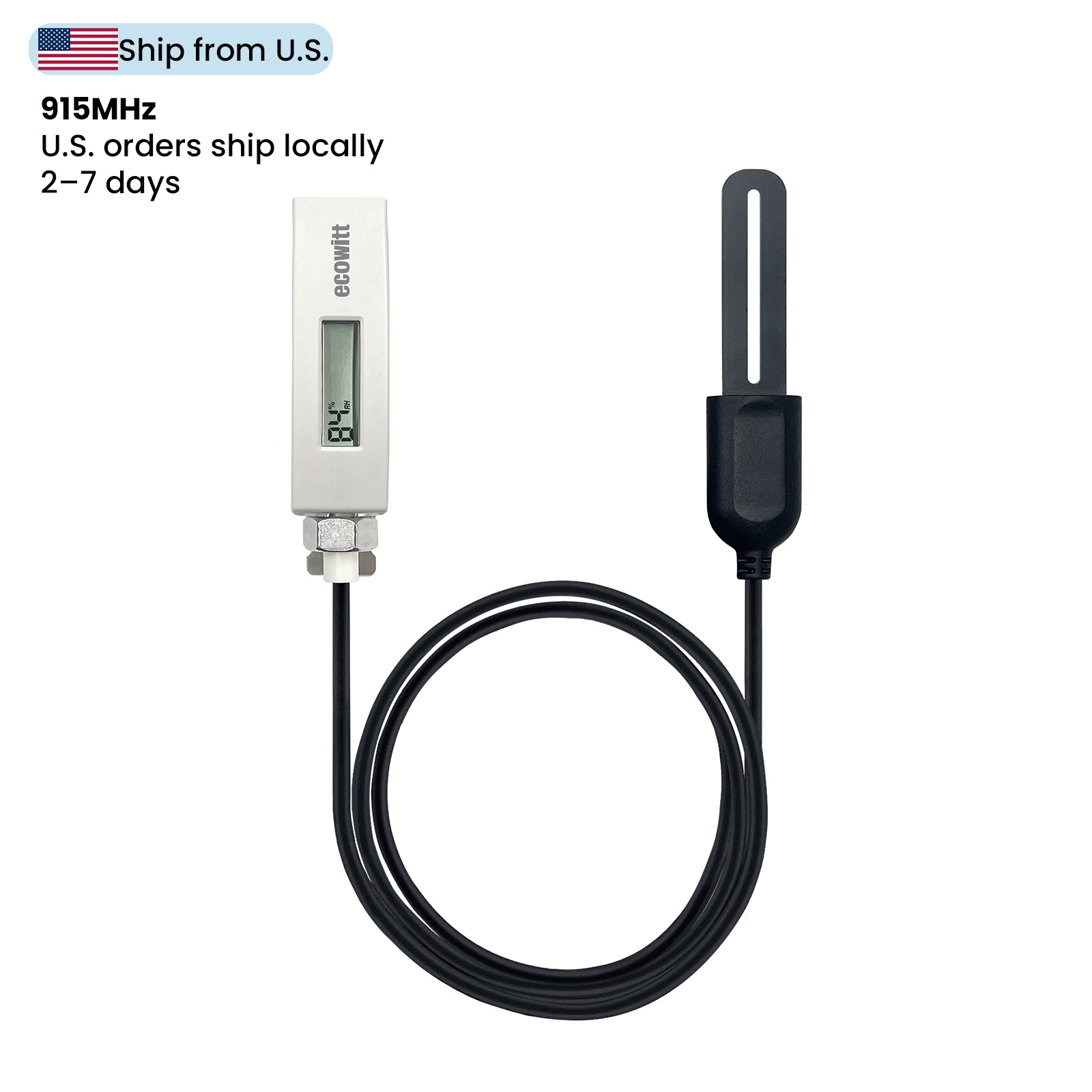

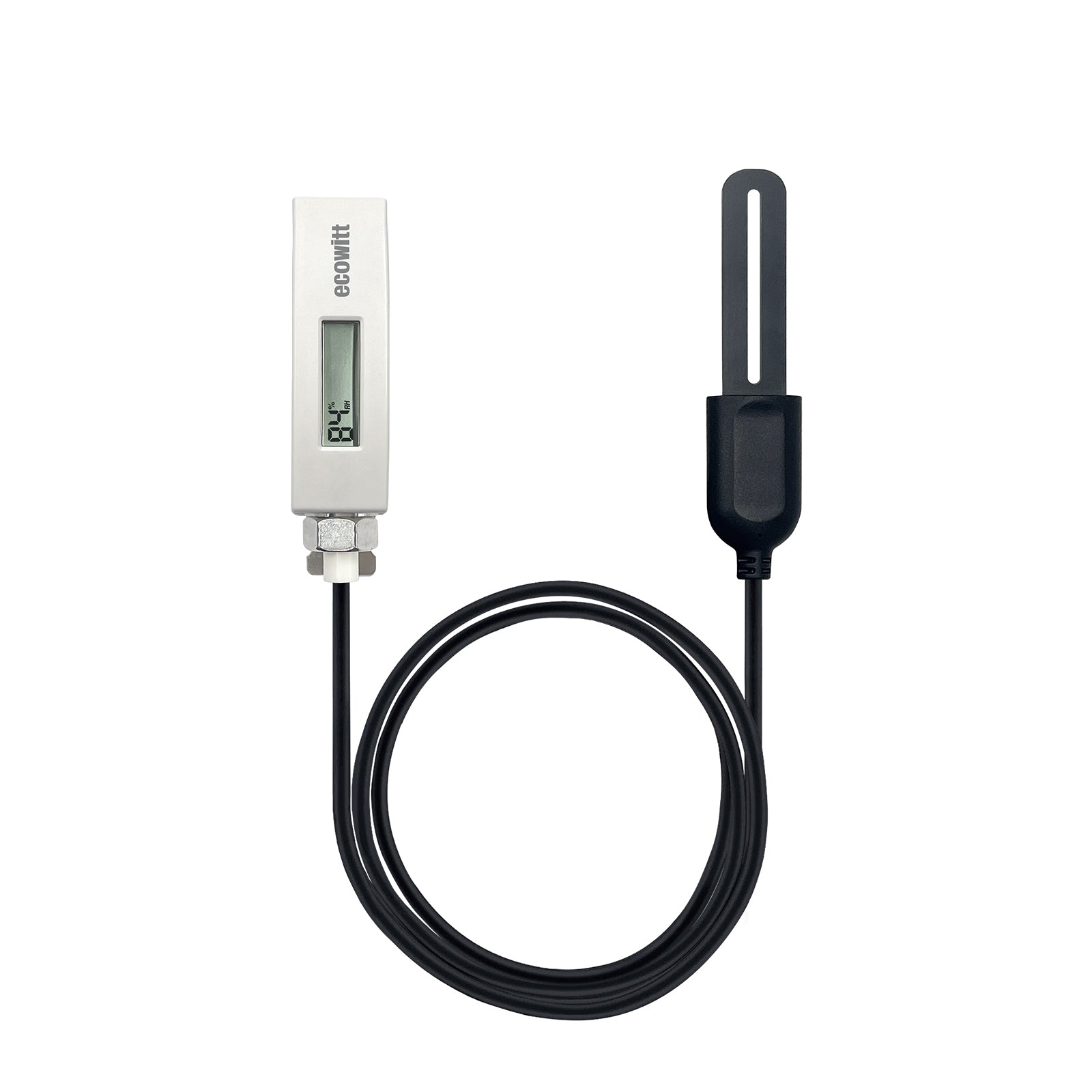

WH51L Wireless Soil Moisture Sensor with 1M PVC Wire
Couldn't load pickup availability
Features:
- Measures soil moisture content every 70 seconds in standard cycle and transmit the data via RF.
- When the current measurement is significant difference from the next time data, RF will enter into quick-transmit state and WH51L will transmit the data every 10 seconds.
- Custom Mode: with 0%AD and 100%AD custom mode to manually calibrate the low/high moisture value so that you can get more accurate result for different soil types. This mode can only be activated through WSViewplus app and in live data display mode.
- Long wireless range, up to 300 feet (100 meters) in open areas.
Overview:
|
1 |
Soil Moisture Sensor Probe |
|
2 |
1m/3.28ft PVC Wire |
|
3 |
LCD Display |
|
4 |
Battery Compartment |
Specifications:
Moisture Range: 0~99%
Accuracy: ±5%
Resolution: 1%
Working Temperature Range: -10°C to 50°C (14℉ to 122℉)
0%AD setting range: 0~200
Initial value: default to factory calibration
100%AD setting range: 0%AD+10~1000 Initial value: default to its factory calibration
Frequency: 915/868/433MHz depending on location (North American: 915MHz; Europe:868MHz; Other areas: 433MHz)
Sensor reporting interval: 70 seconds
Transmission distance in open field: 100m (300 feet)
Device Housing Waterproof Level: IP66
Sensor Probe Waterproof Level: IP68
Package Included:
- One Soil Moisture Sensor
- One Screw ST D5.8*M3*15 Stainless Steel PA for Mounting
- One Stainless Steel Loop 19~298mm for Mounting
- One Fix Bracket 35.1x21x20mm Stainless Steel for WN51L
- One User Manual
| Measurements | |||
|---|---|---|---|
Soil Moisture |
|
—
|
|
Multi-Channel Temperature |
—
|
|
—
|
| Power | |||
Battery supply |
|
|
|
| Connection & Data | |||
Radio Frequency (RF) |
|
|
|
Compatibility Instructions
for all ecowitt network consoles
Please follow the table to make sure you choose the right sensors and concoles before check out.
Note: The "1/4/8/16" means 1 console supports 1/4/8/16 sensors
( excluding accessories )
