4.3" TFT full-colour display
Selectable display units: C or F (temperature); mph, km/h, m/s, knots or Beaufort (wind speed); inHg, hPa or mmHg (pressure); in or mm (rainfall); and more weather data history graph (12, 24, 48, or 72 hr.) Max and min values for sensor with time stampHigh/low alarm options for sensorsHistorical data preserved during power outage on optional SD cardPC software (USB connection)
❥Support weather services for uploading: WU, Weathercloud, and WOW
❥Support uploading to our free weather server: ecowitt.net and user-customized website(needs to have the same protocol with weather underground or ecowitt.net)
❥Support to work with:
- One WH57 lightning sensor
- One WH45 PM2.5/PM10/CO2/temperature and humidity all-in-1 sensor
- Up to 8 WH31 multi-channel temperature and humidity sensors9
- Up to 8 WH51 soil moisture sensors
- Up to 4 WH41/WH43 PM2.5 air quality sensors
- Up to 4 WH55 Water leak sensors
- Up to 8 WN34 Temp Sensors
- Future sensors to be developed
❥Support uploading to customized website(needs to have the same protocol with weather underground or ecowitt.net)
Note:
Pole not included, pole diameter size recommendation: 1.2“-2” (can't exceed 2").
Requirements for microSD Card:
1. Max 32G, Format: Fat32
2. It's not recommended to use microSD card with high speed.

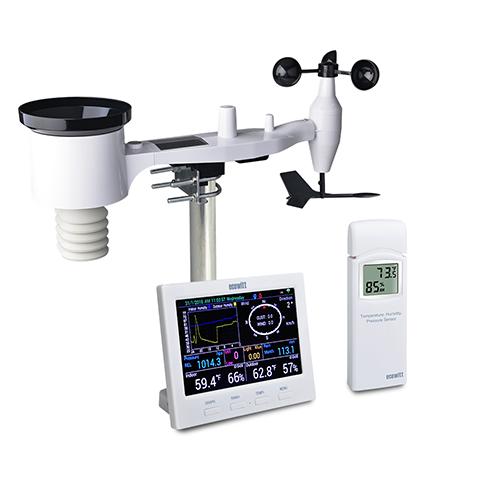

Parts List
1* HP3500_C Wi-Fi Display/Console
1* WH32 Indoor sensor
1* WS69 sensor
1* Wind speed cups (to be attached to the outdoor sensor body)
1* Wind vane (to be attached to outdoor sensor body)
2* U-Bolts for mounting on a pole
4* Threaded nuts for U-Bolts (M5 size)
1* Metal mounting plate to be used with U-Bolts
1* Wrench for M5 bolts
1* 2.5*0.7mm DC 5V power cord
Additional or optional or extra or compatible with sensors (sold separately):
One HP3500 supports one WS90 sensor;
One HP3500 supports one WS80 sensor;
One HP3500 supports one WS69 sensor;
One HP3500 supports one WS68 sensor;
One HP3500 supports one WH40 sensor;
One HP3500 supports one WN32 sensor;
One HP2550 supports one WN32P sensor;
One HP3500 supports one WH45 sensor or WH46 sensor;
One HP3500 supports one WH57 sensor;
One HP3500 supports up to four WH41 sensors or WH43 sensors;
One HP3500 supports up to four WH55 sensors;
One HP3500 supports up to eight WN30 sensors or WN31 sensors or WN36 sensors;
One HP3500 supports up to eight WN34 sensors or WN34S sensors or WN34L sensors or WN34D sensors;
One HP3500 supports up to eight WH51 sensors or WH51L sensors;
Measurements | |
---|---|
UV Index / Solar Radiation |
|
Display Content | |
Rainfall |
|
Wind Speed |
|
Wind Direction |
|
Relative Pressure |
|
Indoor Temperature |
|
Indoor Humidity |
|
Outdoor Temperature |
|
Outdoor Humidity |
|
Dew Point |
|
Wind Chill |
|
Heat Index |
|
Moon Phase |
|
Sunrise & Sunset |
|
Forecast (Pressure Based) |
|
Compatibility Instructions
for all ecowitt network consoles
Please follow the table to make sure you choose the right sensors and concoles before check out.
Note: The "1/4/8/16" means 1 console supports 1/4/8/16 sensors
( excluding accessories )
