HP2553

Regular price $289.99 USD
Regular price Sale price $289.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Choose different sensors and consoles

Additional/optional about sensors and consoles

A table to learn combination of different models

Linking frequency about sensors and consoles

A listing to learn choosing frequency in different country

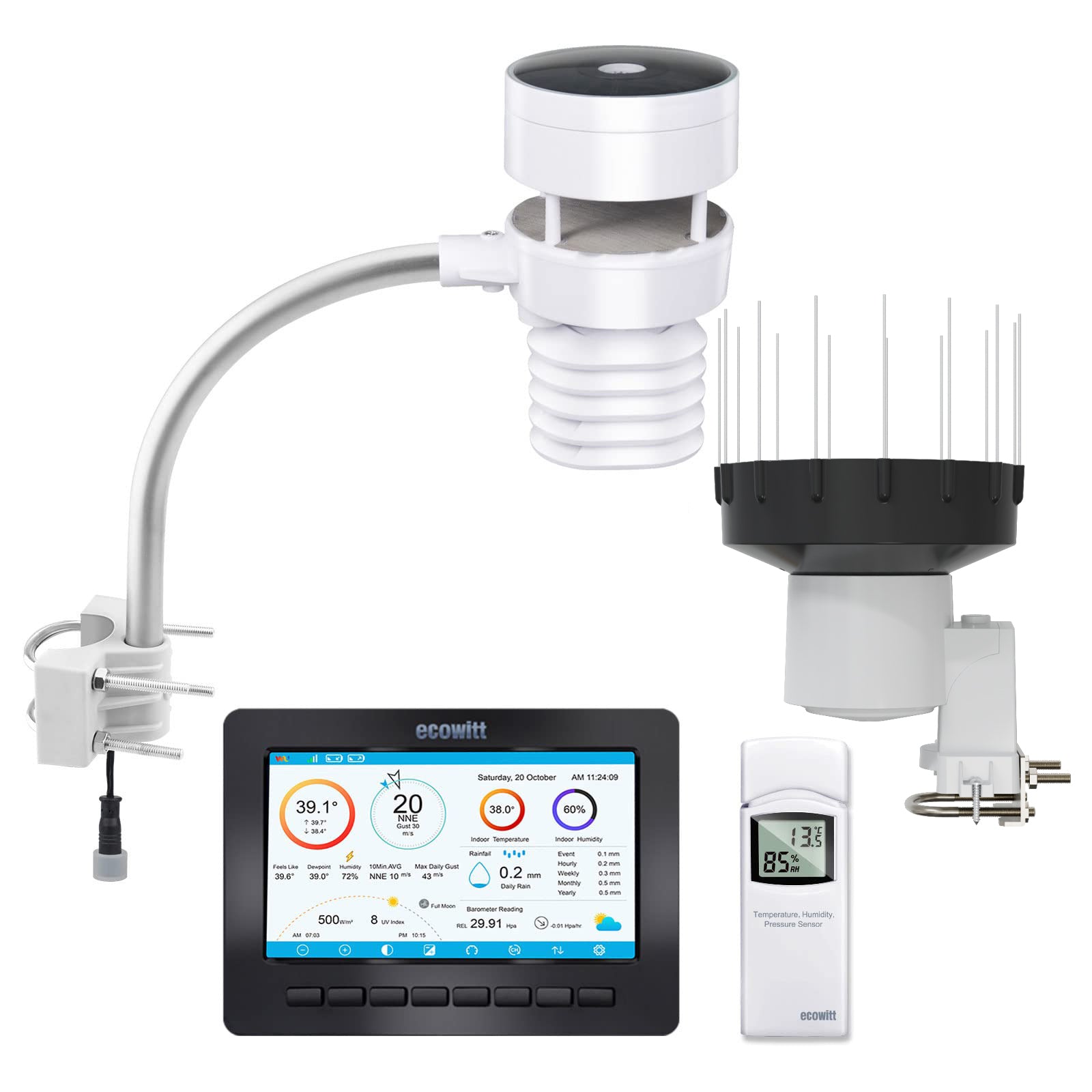

❥❥Personal Weather Station: provides accurate weather information with newly designed interface; allows you to monitor your home and backyard wireless and have fun

❥❥Wi-FI Capable: Supports uploads to Weather Underground/Weather Cloud/WOW via Wi-Fi connection; View weather conditions in your backyard with free iOS and Android apps from weatherunderground

❥❥Separated Weather Sensors for Best Locations: Solar Powered Ultrasonic Anemometer Sensor Package - measures wind direction, wind speed, wind gust, UV & light, temp & humidity data; Self-emptying Rain Collector - The wireless funnel-shaped rain collector is self-emptying and easy to install

❥❥Large TFT Color Screen: User friendly & well-designed interface with 2 background (dark/light) selectable; Displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV; with weather forecast function

❥❥Supports upload to our free weather server: ecowitt.net and user customized website(needs to having the same protocol with wunderground or ecowitt.net) ; Supports MAX 8 WH51 soil moisture sensor + MAX 4 WH41 PM2.5 air quality sensor + MAX 8 WH31 multi channel temperature and humidity sensor;Sensor ID management function and calibration functions for all the sensors


Features:

1. With a 7" large TFT (high resolution) colored display console

2. Wirelessly Wifi connection and supports to upload to WU, Weathercloud and WOW

3. Measures wind speed, wind direction, rainfall, outdoor temperature and humidity, solar radiation and UV. With a temperature, humidity and barometric pressure 3-in-1 sensor indoor unit.

4. Calculates dew point, wind chill, heat index, moon phase and sunset/sunrise time

5. With solar powered 6-in-1 intergrated ultrasonic anemometer sensor package and self-emptying rain gauge sensor

6. Weather forecast & alarm

7. 2 background (dark/light) selectable

8. View historical records of sensors directly on the console

9. User friendly & well-desingned interface


Works with:

One WH57 lightning sensor

One WH45 PM2.5/PM10/CO2/temperature and humidity all-in-1 sensor

Up to 8 WH31 multi-channel temperature and humidity sensors

Up to 8 WH51 soil moisture sensors

Up to 4 WH41/WH43 PM2.5 air quality sensors

Up to 4 WH55 Water leak sensors

Up to 8 WN34 Temp Sensors

Future sensors to be developed


Note:

1.The weather data on our APP is based on WU server and you need to enter your WU station ID before view ing the weather data.

2. The stainless steel poles for the anemometer and rain gauge sensor on the photo are not included.


Specifications:

[Ultrasonic Anemometer Sensor Package]

Transmissiondistance in open field: 200m(600 feet)

Wind speed range: 0 – 40 m/s (0 ~ 89mph)

Wind speed accuracy:

<10m/s, +/-0.5m/s

≥10m/s, +/-5%

UV-Index range: 0 - 15

Light range: 0 – 120 kLux

Light accuracy: ± 15%

Sensor reporting interval: 4.75 seconds

Powerconsumption

Solar panel (built-in):6.5V/4mA

Backup Power: 2 x AA 1.5V Lithium battery (not included)


Note:

There’s a built-in heat plate in the 6-in-1 sensor package body, if the lowest temperature at your place is below -3°C, or 26.6°F, and the weather is mostly snowy or rainy, then you may need to activate the heater by

supplying a 12V/1A power to the sensor heating element for melting accumulated snow or ice, which can influence wind measurement accuracy significantly. Please contact us at support@ecowitt.com for the extension cord information.

[Self-emptying Rain Gauge Sensor]

Transmissiondistance in open field: 100m(300 feet)

Rainfallmeasuring range: 0--6000mm

Sensorreporting interval: 49 seconds

Powerconsumption

Rainsensor: 1xAA Alkaline batteries (not included)

Batterylife: Minimum 12 months
