Wittboy Pro

Wittboy Pro

Regular price $299.99 USD
Regular price $299.99 USD Sale price $299.99 USD
Sale Sold out
Shipping calculated at checkout.
Manual & tutorial

Product description of Wittboy Pro (HP2564)

Features

Sensor: Piezoelectric rain gauge; Ultrasonic wind speed, gust speed,

and wind direction; Temperature; Humidity; Solar light intensity and UV index;

Indoor display: WLAN gateway; Barometric; Temperature; Humidity;


Services

Website page: ecowitt.net;

APP: Ecowitt; Ecowitt view plus;

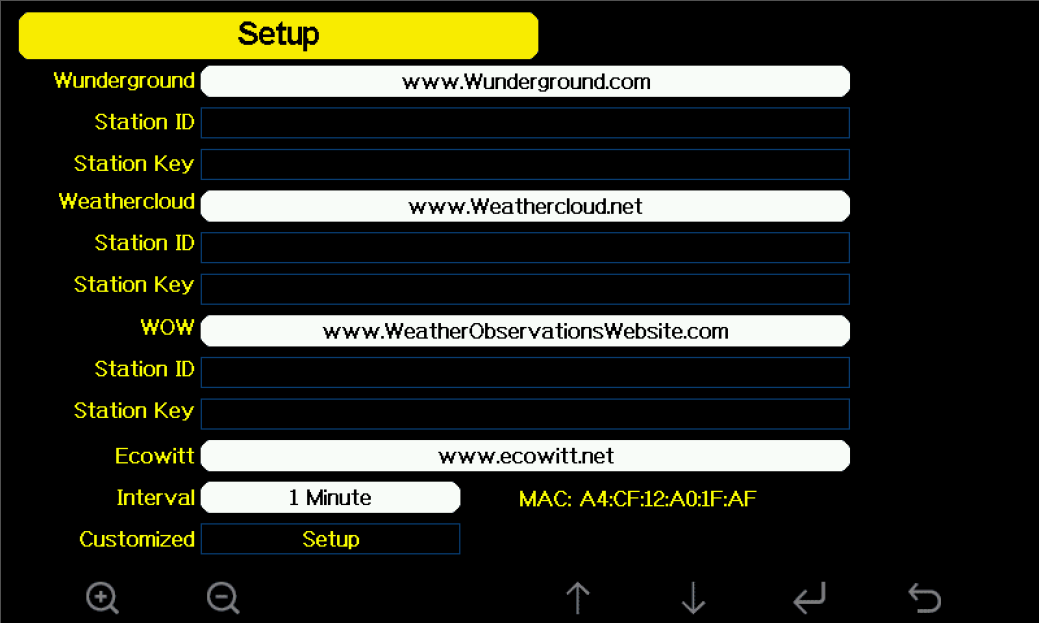

API: Wunderground; Weathercloud; WeatherObservationWebsite; Customized (Homeseer; Homeassistant;)


Specifications (WS90 Sensor)

Measurement Range Accuracy Resolution
Wind speed 0m/s to 40m/s <10m/s, ±0.5m/s; ≥10m/s, ±5% 0.1m/s
Wind direction 0° to 359° <2m/s, ±10°; ≥2m/s, ±7°
Temperature -40°C to 60°C ±0.3°C (± 0.6°F) 0.1°C (± 0.1°F)
Humidity 1% to 99% ±3.5% 0.01
Light 0Klux to 200Klux ±15% 0.1Klux
UVI 1~15 ±2 1
Rain 0~9999 TBA 0.1mm

Sensor (backup): 2 x AA 1.5V battery (not included)

Sensor solar panel (built-in): 6.5V/4mA


Specifications (HP2560_C display)

Measurement Range Accuracy Resolution
Barometric 300 to 1100 hPa (8.85 to 32.5 inHg) ± 5hPa 0.1hPa (0.01 inHg)
Temperature (Indoor) -10°C to 60°C (-14°F to 140°F) ± 0.3°C (± 0.6°F) 0.1°C (0.1°F)
Humidity (Indoor) 1% to 99% ± 3.5% 1%

USB to 2.5*0.7mm DC 5V power plug connector cable: 5V ⎓ 1.0A 5.0W


Transmission between gateway and sensor

Transmission distance in open field: 150 m (500 ft.) depend on environment

RF frequency: 433/868/915/920 MHz depending on location

Sensor reporting interval: 8.8 seconds


Transmission between gateway and Wi-Fi router

Transmission distance in open field: 50 m (165 ft.) depending on router and environment

RF Frequency: 2.4 GHz

WLAN and Ethernet: 802.11 b/g/n (802.11n, Max 150 Mbps)

Updates on the Internet: Customize 1-5 minutes (recommend 1 minute)


Parts List

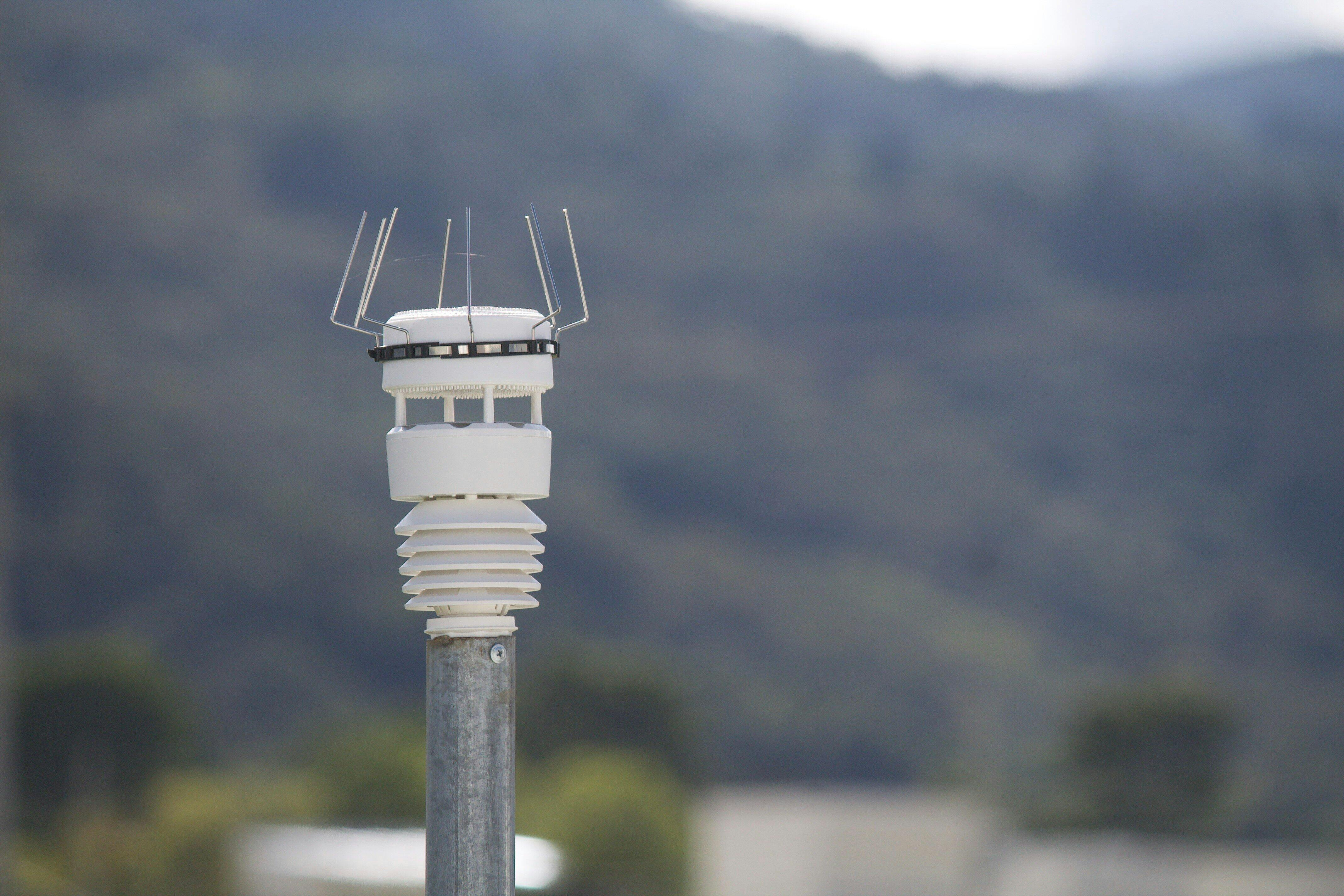

1* WS90 sensor

1* HP2560_C Display/Gateway/Console

1* Detachable bird spikes

1* Power plug

1* Power cord



View full details

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Alain M.
Nice weather station

Standard delivery to VN was quite smooth and fast.
Weather station and additional sensors were easy to setup and configure.
Connection to internet and hosting websites works almost out of the box (very simple to configure).
The all in one compact outside sensor is very convenient to install.

P
Paweł Pelc
Easy to manage

The configuration and assembly of the unit was very easy. It's much simpler than in case of the previous weather stations I've used. The station easy connect to Internet and data are flowing without any problems.
