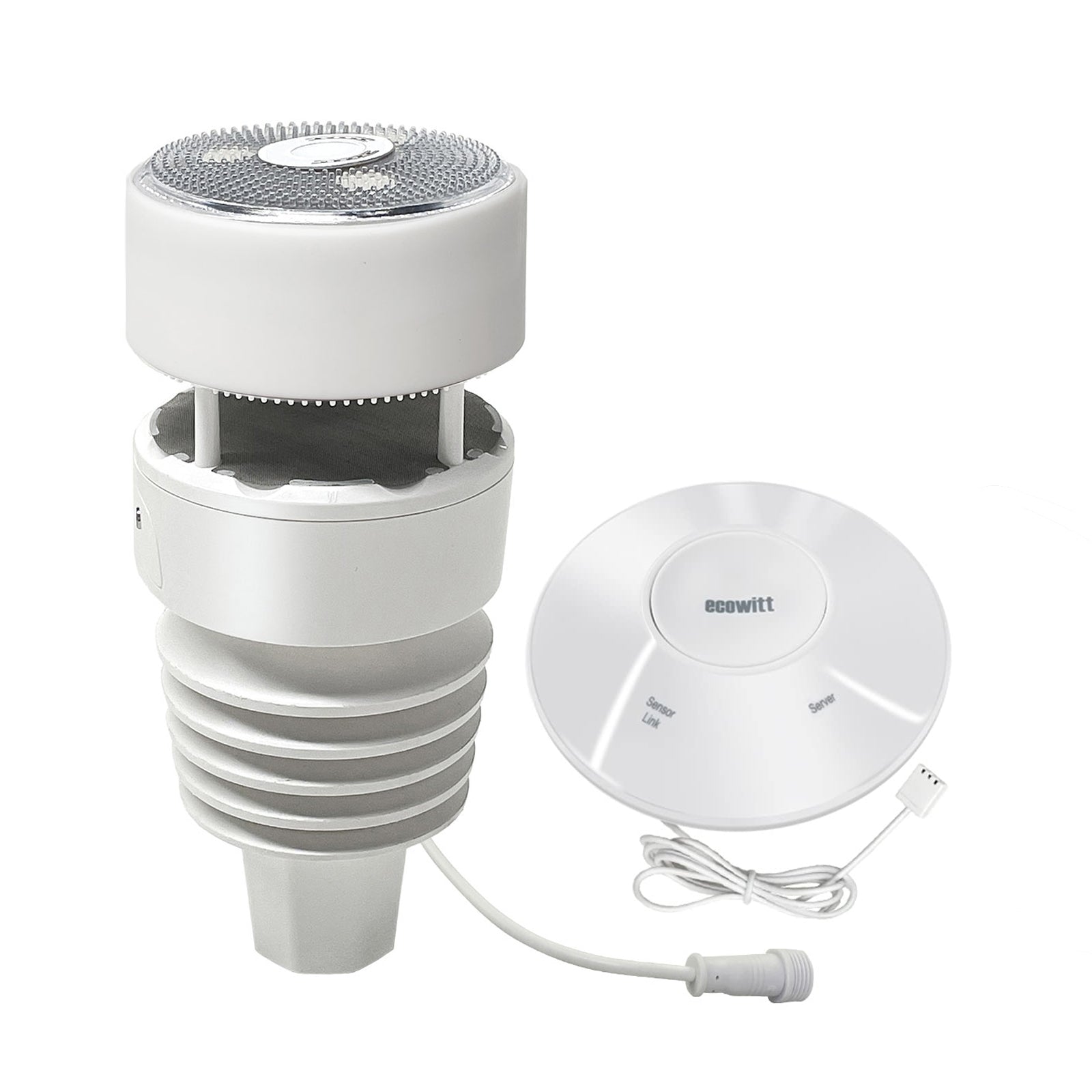

GW2001 Wittboy Weather Station IoT Wi-Fi Hub with 7-in-1 Outdoor Solar Powered Anti-vibration Haptic Rainfall Sensor, Includes Bird Spikes

$199.99 USD
$199.99 USD $199.99 USD
Shipping is calculated at checkout. (For EU customers: For parcels shipped via [Standard], VAT is included.)
Radio Frequency: Europe MHz 868
How to choose frequency
ecowittHP2551 Wi-Fi Weather Station Large TFT Screen with Solar Powered 7-in-1 Outdoor Sensor and WN32P Indoor Sensor
HP2551 freeshipping - ecowitt (7263975997602)
Ecowitt GW3001 Wittboy Weather Station, IoT Wi-Fi Hub with SD Card Data Storage, 7-in-1 Outdoor Solar Powered Anti-vibration Haptic Rainfall Sensor, Includes Bird Spikes
ecowittEcowitt GW3001 Wittboy Weather Station, IoT Wi-Fi Hub with SD Card Data Storage, 7-in-1 Outdoor Solar Powered Anti-vibration Haptic Rainfall Sensor, Includes Bird Spikes
$199.99 USD
$199.99 USD $199.99 USD

Attention: If you require a more accurate rain data, we suggest you use WH40 in conjunction with WS90. If there is no accurate requirement for every data when it rained, then WS90 is just fine.

Features

WS90:

Rainfall (Piezoelectric rain gauge);

Wind Speed & Direction(Ultrasonic anemometer, starting wind speed: 0.3 m/s);

Solar Light Intensity & UVI;

Outdoor temperature & Humidity;

Solar power, battery power, and heater power supply;

Waterproof IPX5

GW2000:

Indoor Temperature & Humidity, Pressure;

WLAN or LAN Wi-Fi gateway;

Services

Website page: ecowitt.net;

WubUI page: 192.168.4.1;

APP: Ecowitt;

Weather servers support: Wunderground; Weathercloud; WeatherObservationWebsite; Customized (Homeseer; Homeassistant;)

Specifications (WS90 Sensor Array)

Measurement Range Accuracy Resolution
Wind speed 0m/s to 40m/s <10m/s, ±0.5m/s; ≥10m/s, ±5% 0.1m/s
Wind direction 0° to 359° <2m/s, ±10°; ≥2m/s, ±7° 1°
Temperature -40°C to 60°C ±0.3°C (± 0.6°F) 0.1°C (± 0.1°F)
Humidity 1% to 99% ±3.5% 0.01
Light 0Klux to 200Klux ±15% 0.1Klux
UVI 1 to 15 ±2 1
Rain 0 to 9999 TBA 0.1mm

Sensor solar panel (built-in): 6.5V/4mA

Sensor (backup): 2 x AA 1.5V battery (not included)

Specifications (GW2000 Hub)

Note: The GW2000 requires a POE splitter to be powered over POE, as it doesn’t support POE directly. Please click here to order: PoE Splitter

Measurement Range Accuracy Resolution
Barometric 300 to 1100 hPa (8.85 to 32.5 inHg) ± 5hPa 0.1hPa (0.01 inHg)
Temperature (Indoor) -10°C to 60°C (-14°F to 140°F) ± 1°C (± 1.8°F) 0.1°C (0.1°F)
Humidity (Indoor) 1% to 99% ± 3.5% 1%

USB to 3.5*0.7mm DC 5V power plug connector cable: 5V ⎓ 1.0A 5.0W


RF Transmission

RF Wireless Range: 100 m (328 ft.) depend on environment

RF Frequency: 433/868/915/920 MHz depending on location

Sensor RF reporting interval: 8.8 seconds

WLAN Transmission

WLAN Range: 50 m (165 ft.) depending on router and environment

WLAN: 802.11 b/g/n 2.4 GHz (802.11n, Max 150 Mbps)

Updates on the Internet: Customize 1-5 minutes (recommend 1 minute)

Parts List

1* 7-in1 Weather sensor (WS90)

1* Hub/Gateway/Console (GW2000)

1* Detachable bird spikes

1* USB Power cord

1* Ethernet cable

1* User manual

Packaged information

Length * Width * Height: 230*115*155mm

Weight: 1000g

Battery: Not included

[GW2001 Manual](https://s.ecowitt.com/WEHEBK)

Compatibility Instructions

for all ecowitt network consoles

Please refer to the table to choose the correct sensors and consoles before checkout.
Note:
1) "1/4/8/16" = max number of sensors supported per console (excluding accessories).
2) Upload only = sensor readings shown only in the Ecowitt app and cloud (www.ecowitt.net).
3) Firmware (e.g. V1.9.6 / V2.0.2) = gateway/console must run this version or newer.
