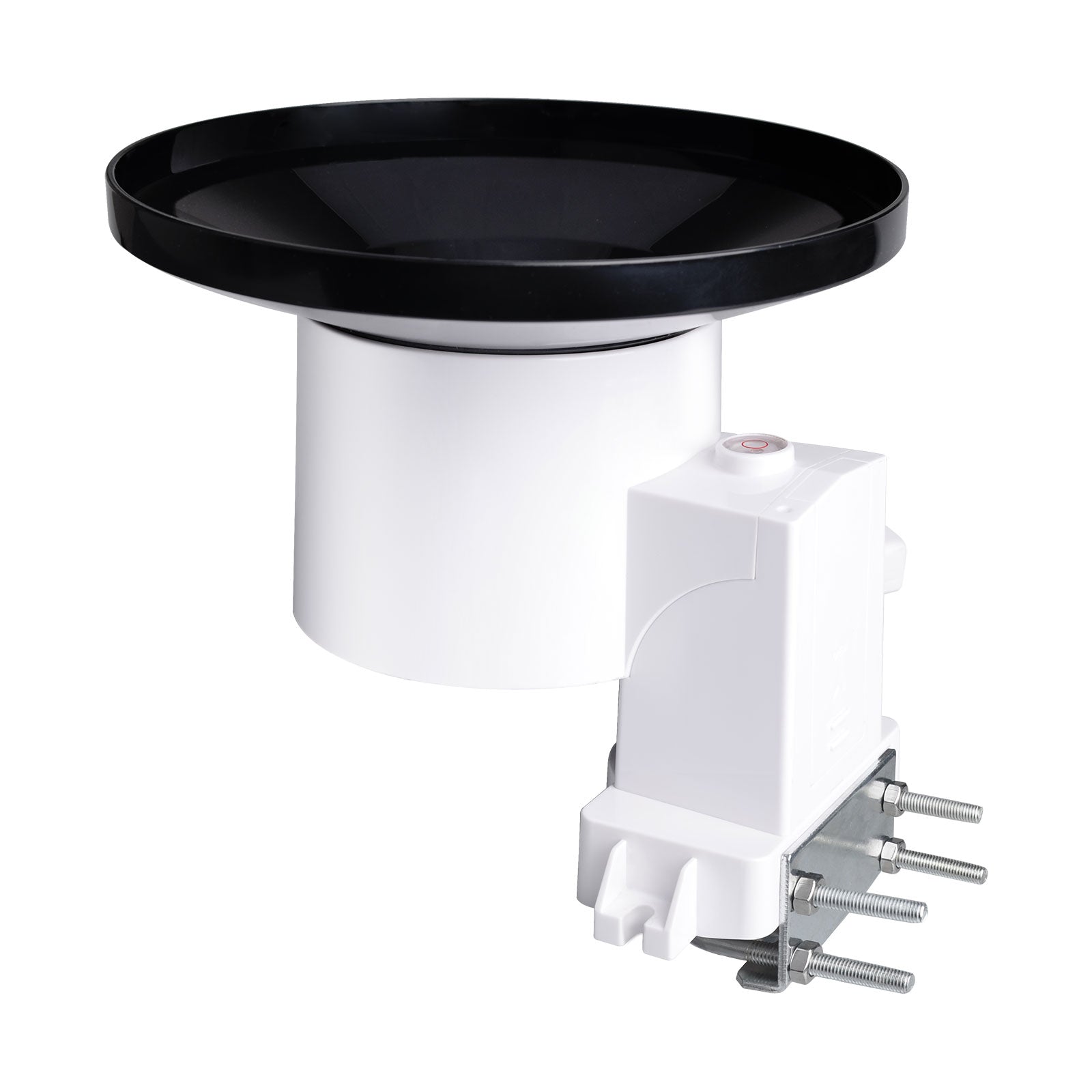

- Digital Rain Gauge Sensor: Measures rainfall rate, daily,weekly, monthly and yearly data with 0.1mm/0.01inch resolution; allowing you to monitor the rain condition in your backyard/garden/farm/land crop with 300FT/100M wireless transmission range; [Accessory Only, Can NOT Be Used Alone]
- Live Data on APP: requires the GW1000 WIFI gateway(sold separately) to connect to wifi, after the WIFI configuration,the live rainfall data can be viewed directly on the WS View App; supports uploading to our free Ecowitt Weather server(ecowitt.net) to view the sensor data graph and download the history records on the website; it's recommended to add a shortcut of the website on the home screen of your phone for quick access
- WU Dashboard on APP: supports uploads toWU/WeatherCloud/WOW. The rainfall history graph of your WU station ID can beviewed on the WU Dashboard on the WS View App
- Self-emptying Rain Collector: The wireless funnel-shaped rain collector is self-emptying and easy to install; Rain sensor calibration andcustomized initial rain value functions available on the WS View App
- Works with WH5360 Rain Gauge Display Console(sold separately). The sensor and display console should be at the same frequency
Features
❥❥Measures rainfall rate, daily,weekly, monthly andyearly data.
❥❥No display, need to work with GW1000 WIFI gateway to complete the WIFI configuration on our WS View App.
❥❥After the WIFI configuration,the live rainfall data can be viewed directly on the WS View App.
❥❥Supports uploads toWU/WeatherCloud/WOW. The rainfall history graph of your WU station ID can beviewed on the WU Dashboard on the WS View App.
❥❥Rain sensor calibration andcustomized initial rain value functions available on the WS View App.
❥❥Works with WH5360 Rain Gaugedisplay console(sold separately). The sensor and display console should be atthe same frequency.
Specification
Dimensions: 185×185×178(mm)
Weight: 365(g)
Material of Plastic Casing: ABS+PC
Rainfall Metering Range: 0mm to 6000mm
Rainfall Metering Accuracy: ± 5%
Rainfall Metering Resolution: 0.3 mm (for volume < 1,000 mm); 1 mm (for volume ≥ 1,000 mm
Data reporting Interval: About 49 seconds
RF Connection Frequency: 920/915/868/433MHz (depending on local regulations)
RF Wireless Range (in open areas): Over 100 meters (330 ft.)
Operating Temperature Range: -40°C to 60°C(-40℉ to 140℉)
Protection Rating: IPX4
Power Supply: 2*AA batteries(not included)
Battery Life: 1 years
Package Included:
One Rain Gauge Sensor(Rain Collector only, NO Display Console)
One Set of U-bolts for installation
One User Manual
Note: The stainless steel pole is not included
Display Content | |
---|---|
Rainfall |
|
Compatibility Instructions
for all ecowitt network consoles
Please follow the table to make sure you choose the right sensors and concoles before check out.
Note: The "1/4/8/16" means 1 console supports 1/4/8/16 sensors
( excluding accessories )
