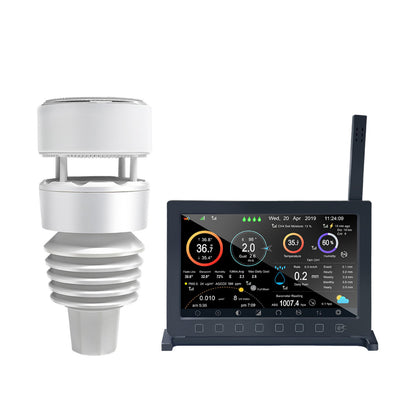

HP2564 Wittboy Pro 7'' TFT Full-colour Touch Button Display with 7-in-1 Outdoor Solar Powered Anti-vibration Haptic Rainfall Sensor
15% OFF Code: BLACKFRIDAY2024 (Nov 18 - Dec 3 PST)
Couldn't load pickup availability
Product description of Wittboy Pro (HP2564)
Features
Sensor: Piezoelectric rain gauge; Ultrasonic wind speed, gust speed,
and wind direction; Temperature; Humidity; Solar light intensity and UV index;
Indoor display: WLAN gateway; Barometric; Temperature; Humidity;
Services
Weather servers support: Ecowitt;Wunderground; Weathercloud; WeatherObservationWebsite; Customized (Homeseer; Homeassistant;)
Specifications (WS90 Sensor)
| Measurement | Range | Accuracy | Resolution |
| Wind speed | 0m/s to 40m/s | <10m/s, ±0.5m/s; ≥10m/s, ±5% | 0.1m/s |
| Wind direction | 0° to 359° | <2m/s, ±10°; ≥2m/s, ±7° | 1° |
| Temperature | -40°C to 60°C | ±0.3°C (± 0.6°F) | 0.1°C (± 0.1°F) |
| Humidity | 1% to 99% | ±3.5% | 0.01 |
| Light | 0Klux to 200Klux | ±15% | 0.1Klux |
| UVI | 1~15 | ±2 | 1 |
| Rain | 0~9999 | TBA | 0.1mm |
Sensor (backup): 2 x AA 1.5V battery (not included)
Sensor solar panel (built-in): 6.5V/4mA
Specifications (HP2560_C display)
| Measurement | Range | Accuracy | Resolution |
| Barometric | 300 to 1100 hPa (8.85 to 32.5 inHg) | ± 5hPa | 0.1hPa (0.01 inHg) |
| Temperature (Indoor) | -10°C to 60°C (-14°F to 140°F) | ± 0.3°C (± 0.6°F) | 0.1°C (0.1°F) |
| Humidity (Indoor) | 1% to 99% | ± 3.5% | 1% |
USB to 2.5*0.7mm DC 5V power plug connector cable: 5V ⎓ 1.0A 5.0W
Transmission between gateway and sensor
Transmission distance in open field: 150 m (500 ft.) depend on environment
RF frequency: 433/868/915/920 MHz depending on location
Sensor reporting interval: 8.8 seconds
Transmission between gateway and Wi-Fi router
Transmission distance in open field: 50 m (165 ft.) depending on router and environment
Wi-Fi: 2.4 GHz 802.11 b/g/n (802.11n, Max 150 Mbps)
Updates on the Internet: Customize 1-5 minutes (recommend 1 minute)
Parts List
1* WS90 sensor
1* HP2560_C Display/Gateway/Console
1* Detachable bird spikes
1* Power plug
1* Power cord
Additional or optional or extra or compatible with sensors (sold separately):
One HP2560 supports one WS90 sensor;
One HP2560 supports one WS80 sensor;
One HP2560 supports one WS69 sensor;
One HP2560 supports one WS68 sensor;
One HP2560 supports one WH40 sensor;
One HP2560 supports one WN32 sensor;
One HP2560 supports one WH45 sensor or WH46 sensor;
One HP2560 supports one WH57 sensor;
One HP2560 supports up to four WH41 sensors or WH43 sensors;
One HP2560 supports up to four WH55 sensors;
One HP2560 supports up to eight WN30 sensors or WN31 sensors or WN36 sensors;
One HP2560 supports up to eight WN34 sensors or WN34S sensors or WN34L sensors or WN34D sensors;
One HP2560 supports up to eight WH51 sensors or WH51L sensors;
 | |
|---|---|
| Built-in sensor measurement | |
Haptic Rain Gauge |
|
Ultrasonic Anemometer |
|
Pressure |
|
Indoor Thermo-Hygrometer (Temp & Humidity) |
|
Outdoor Thermo-Hygrometer (Temp & Humidity) |
|
UV Index / Solar Radiation |
|
| Display Content | |
Rainfall |
|
Wind Speed |
|
Wind Direction |
|
Relative Pressure |
|
Indoor Temperature |
|
Indoor Humidity |
|
Outdoor Temperature |
|
Outdoor Humidity |
|
Dew Point |
|
Wind Chill |
|
Heat Index |
|
Moon Phase |
|
Sunrise & Sunset |
|
Forecast (Pressure Based) |
|
| Console Features | |
Screen |
|
Manage sensor on console |
|
Built-in a Wi-Fi Gateway |
|
Manage sensor on app |
|
| Connection & Data | |
Wi-Fi (2.4G only) |
|
Radio Frequency (RF) |
|
SD Card |
|
| Addable | |
Ecowitt IoT Device |
|
Ecowitt Sensor |
|
Compatibility Instructions
for all ecowitt network consoles
Please follow the table to make sure you choose the right sensors and concoles before check out.
Note: The "1/4/8/16" means 1 console supports 1/4/8/16 sensors
( excluding accessories )
